[IN PRODUCTION] KEYLICE - ALICE 65% LAYOUT, DUAL-MODE PCB, MULTI-MOUNT, EXCELLENT SURFACE PROCESS

$320.00
Case Color :
Weight :
PCB :

Subcribe to back in stock notification


In order to ensure that you can get the corresponding compensation in case of package loss, we suggest that you can check the purchase insurance option in the shopping cart.

Please contact us: support@velocifiretech.com if you have any questions.

Preorder Information

  • Price: From 320$
  • Sale Format: Unlimited
  • Preorder Time: July 4th to August 31st, 2023 (The customer who purchases before August can have a gift of walnut hand rest. )
  • Estimated Delivery Time: 2 months after Preorder (The customer who purchases before August can get the product earlier. )
  • Please check Purchase Disclaimer and Quality Disclaimer at the end of this page.

Purchase Add On Here

Regional Vendors

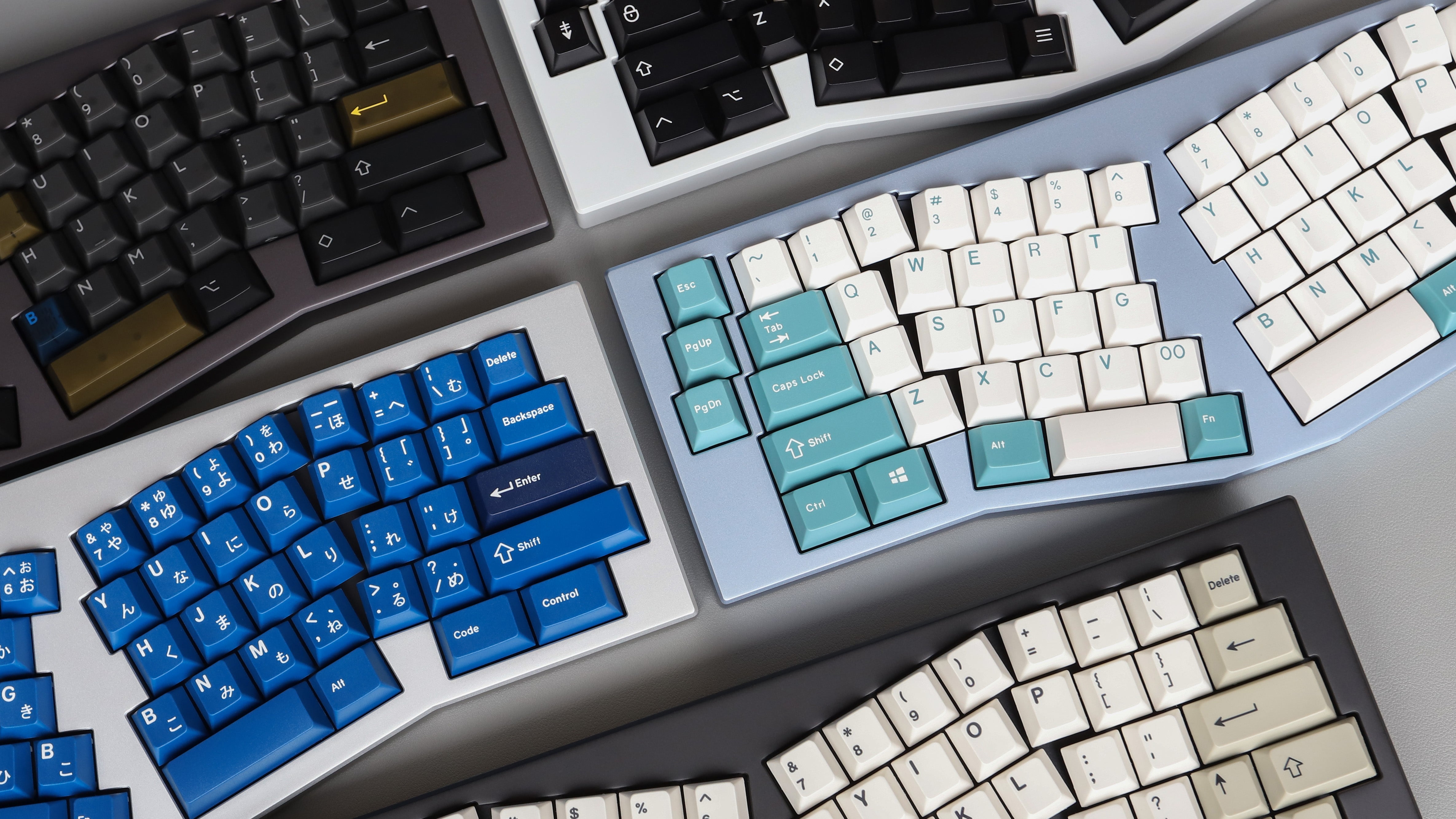

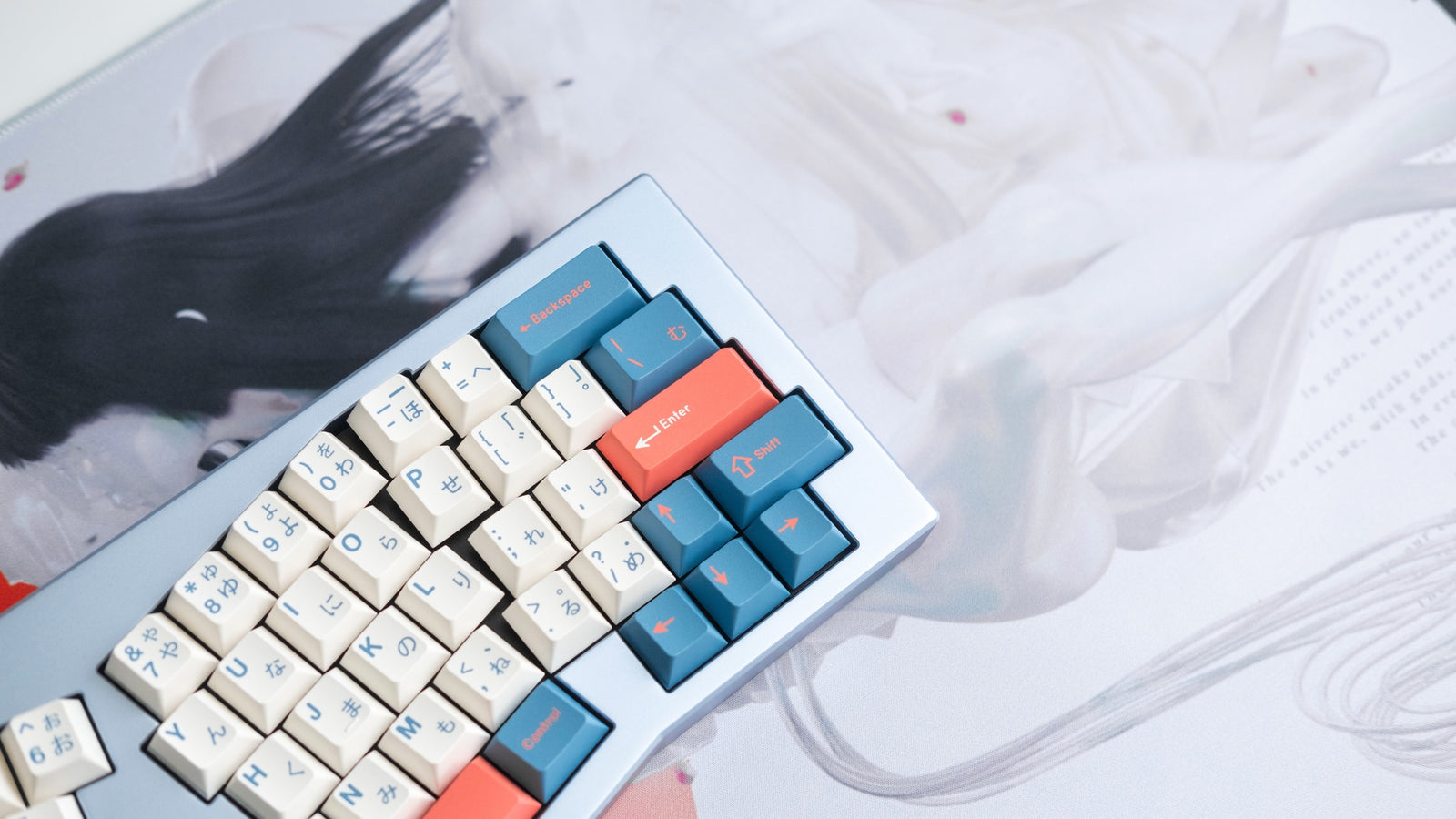

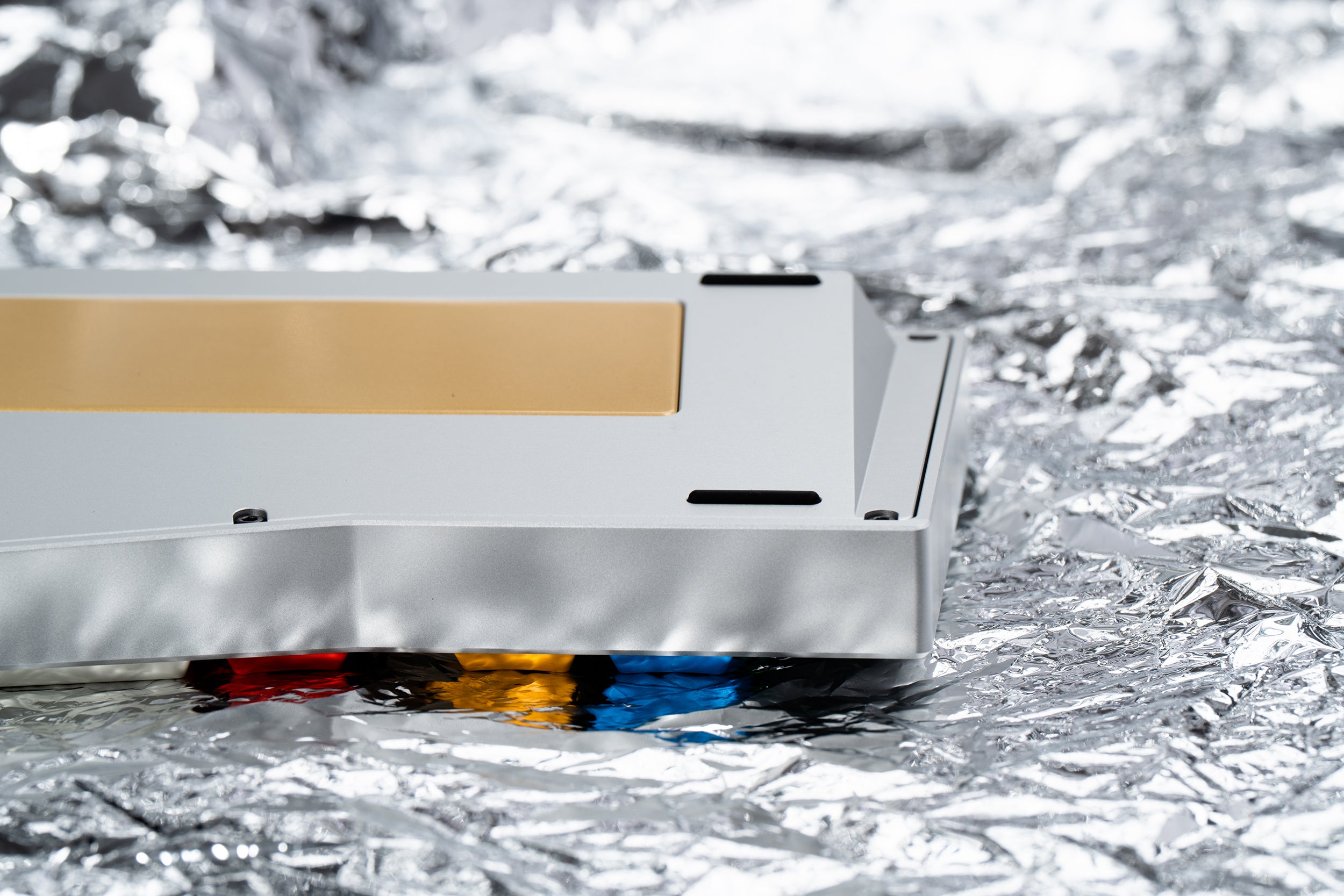

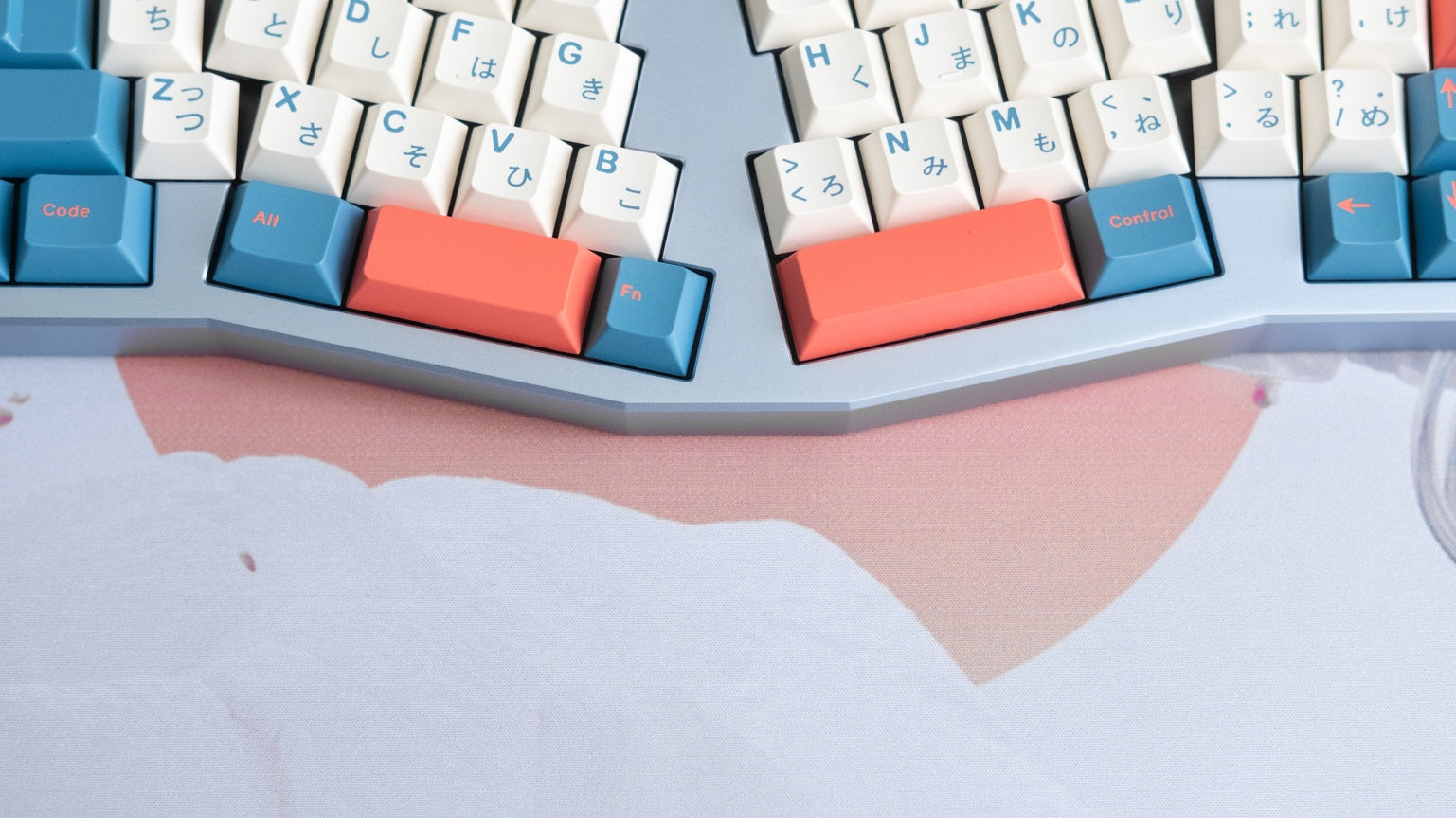

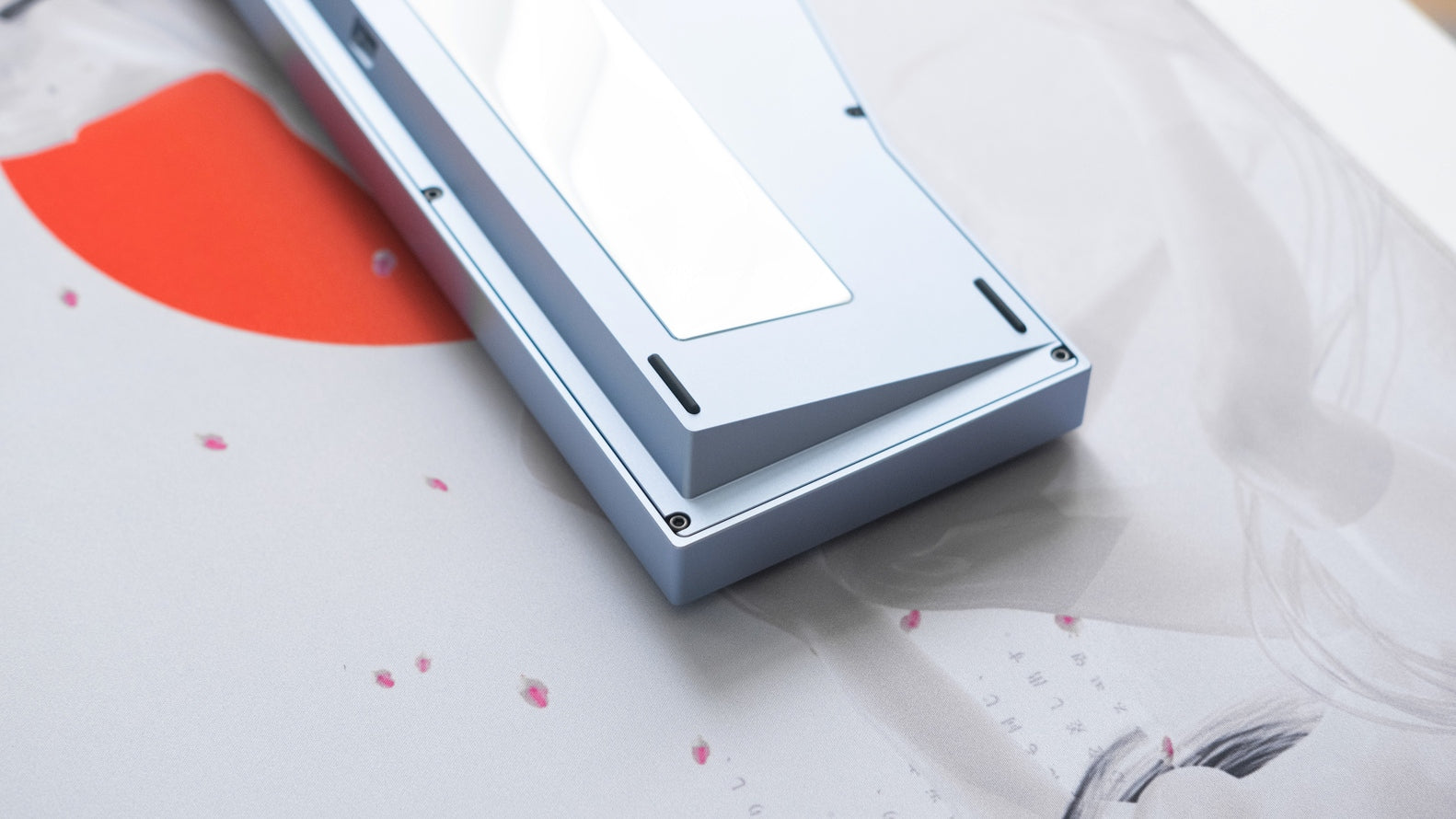

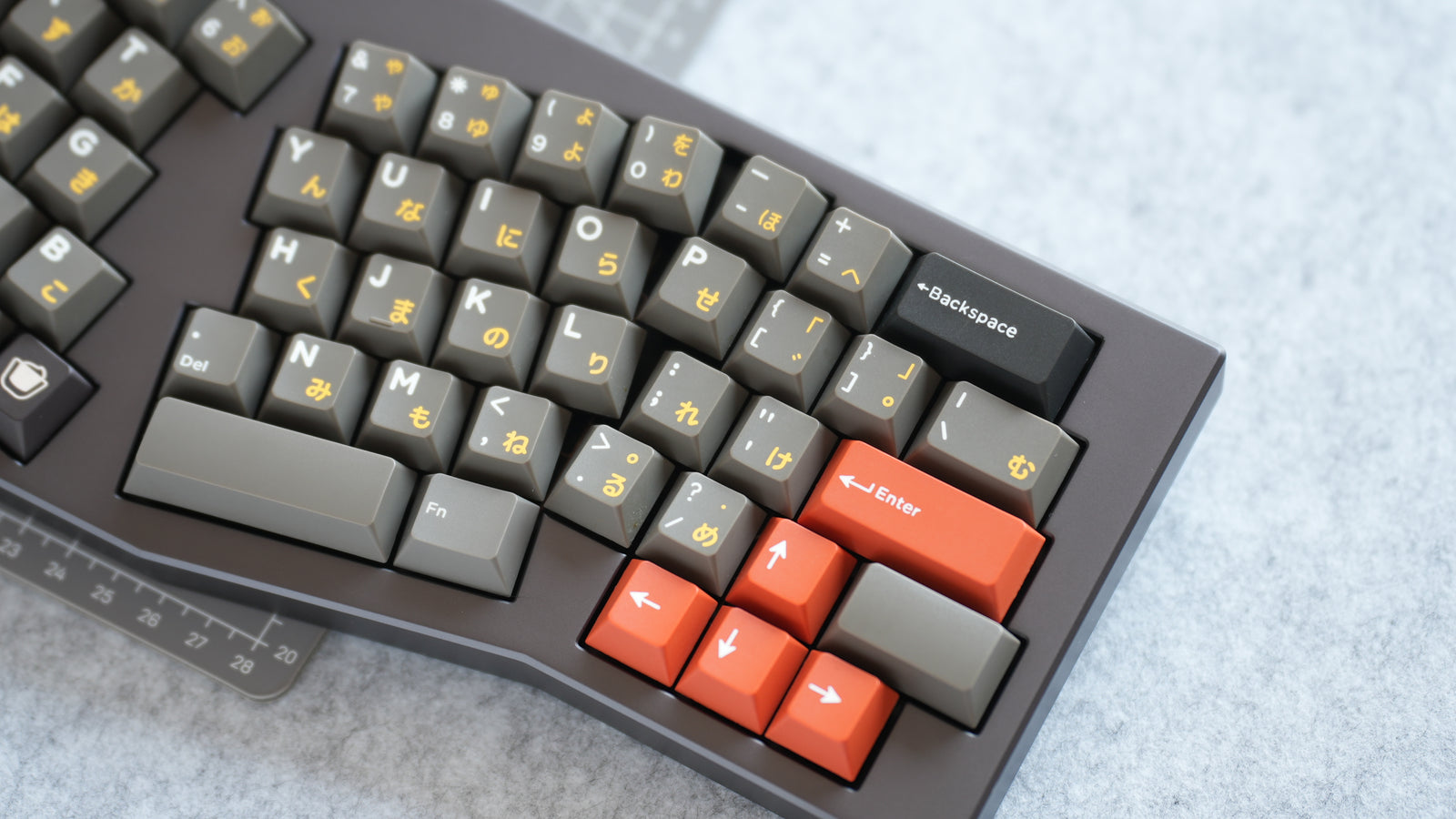

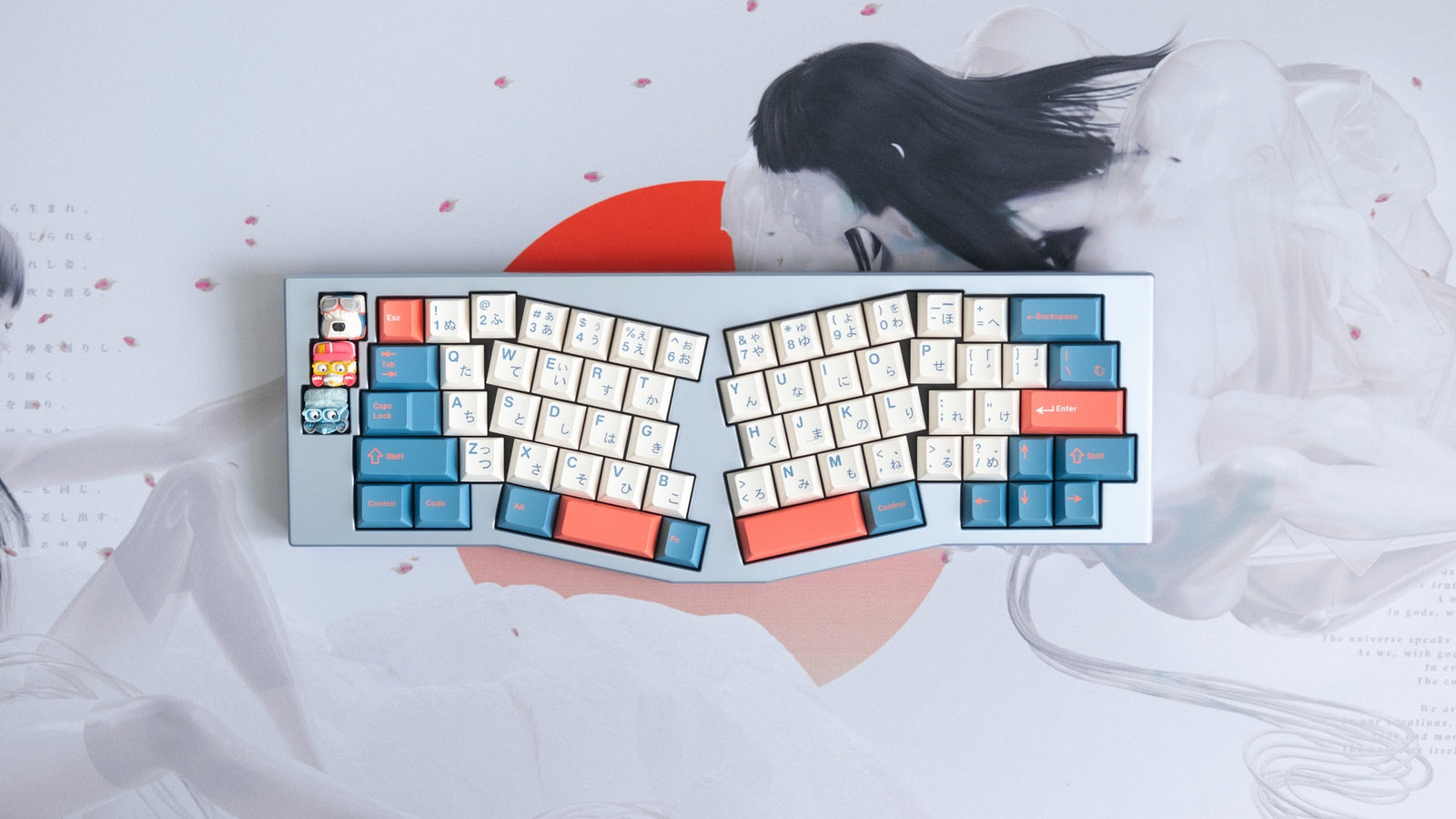

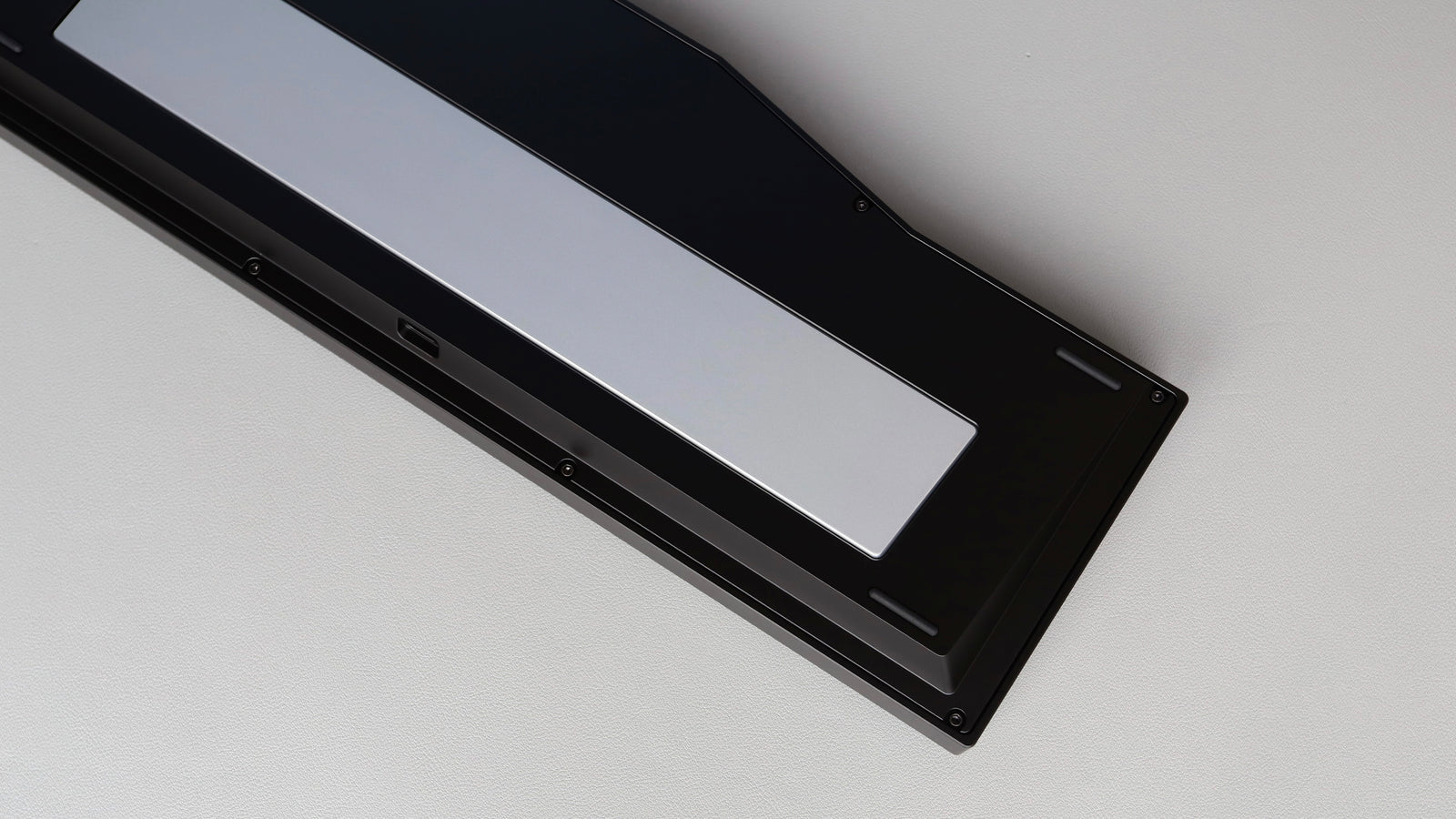

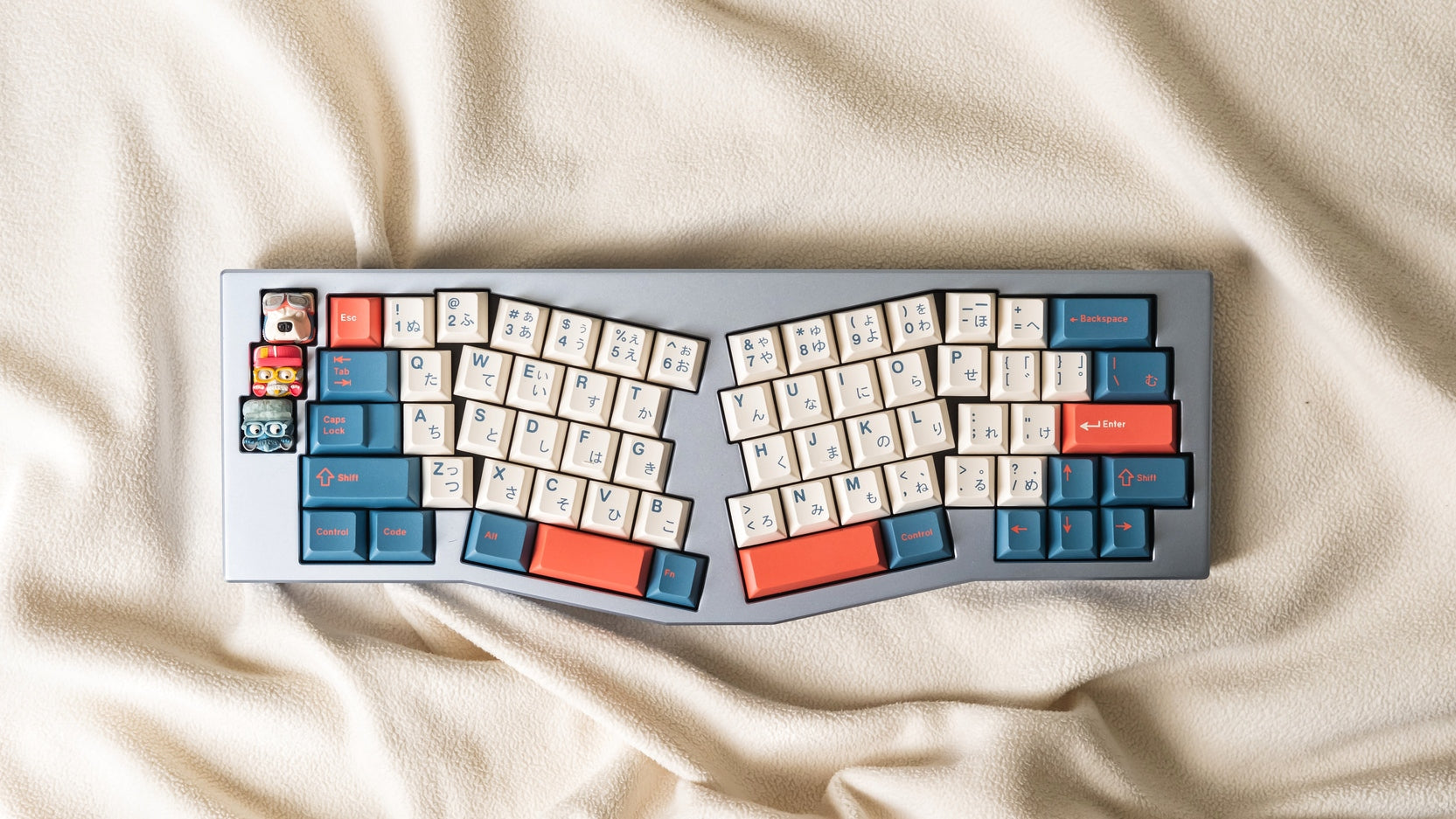

Prototype Photo

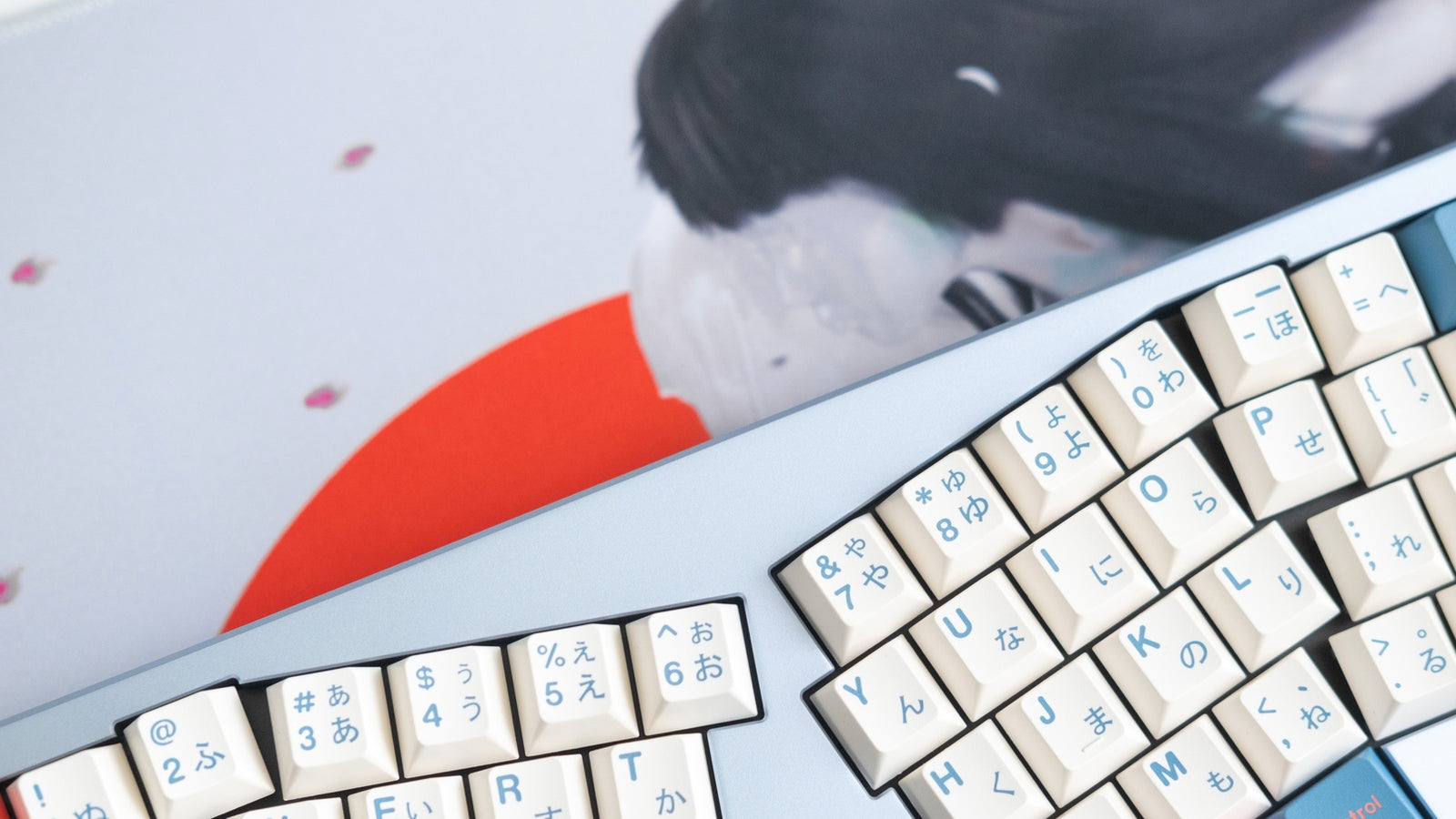

Ice Blue [More]

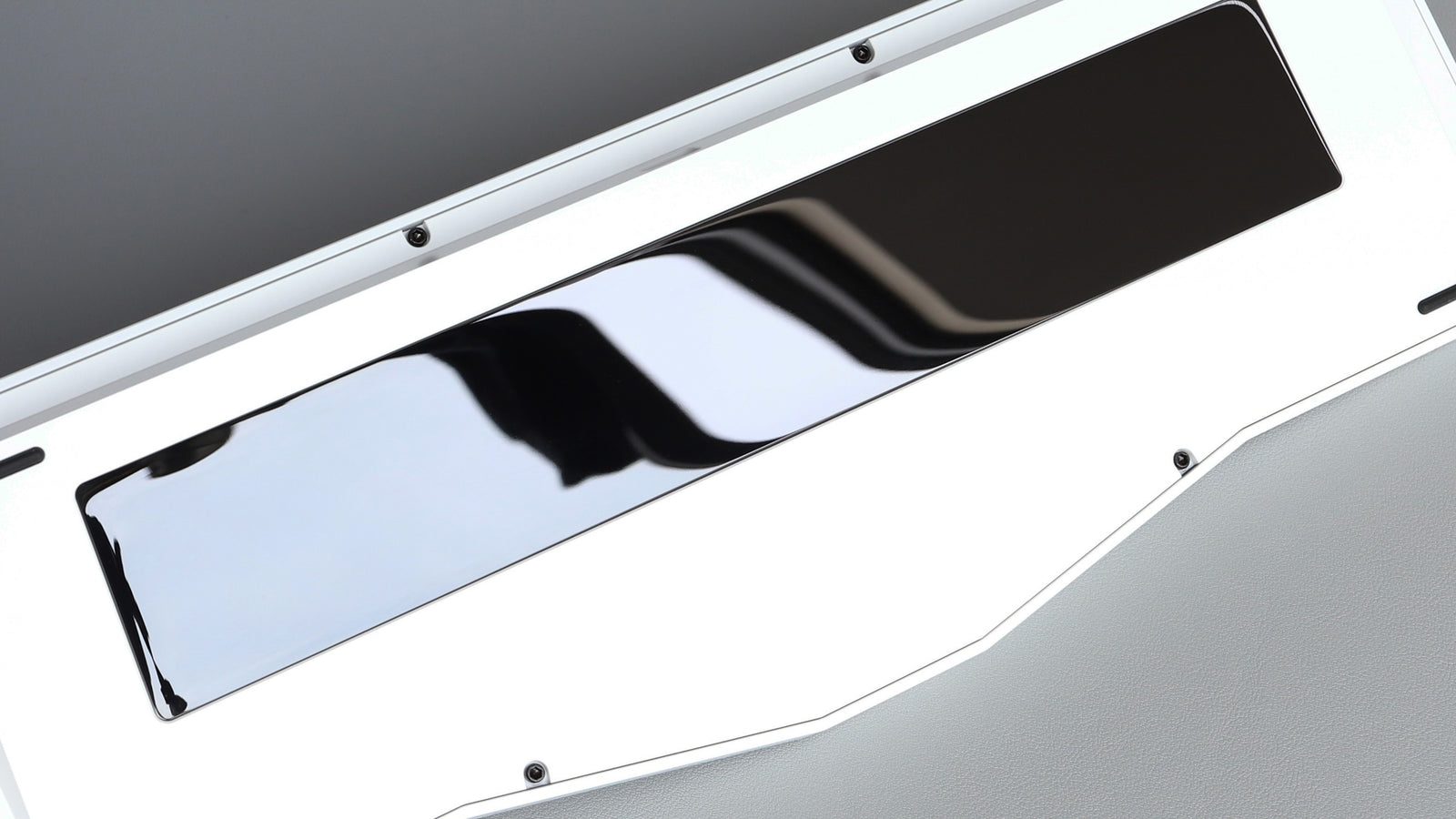

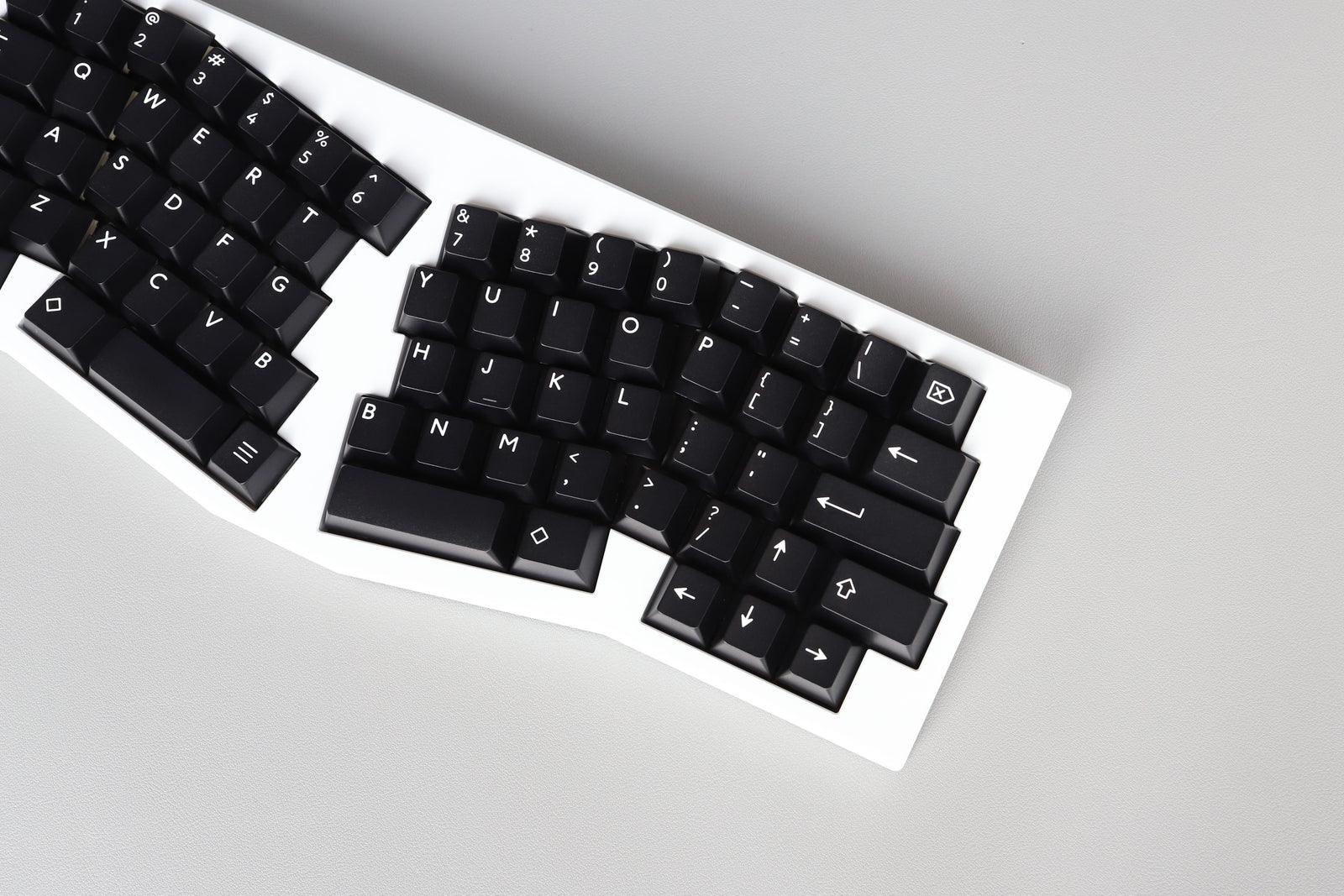

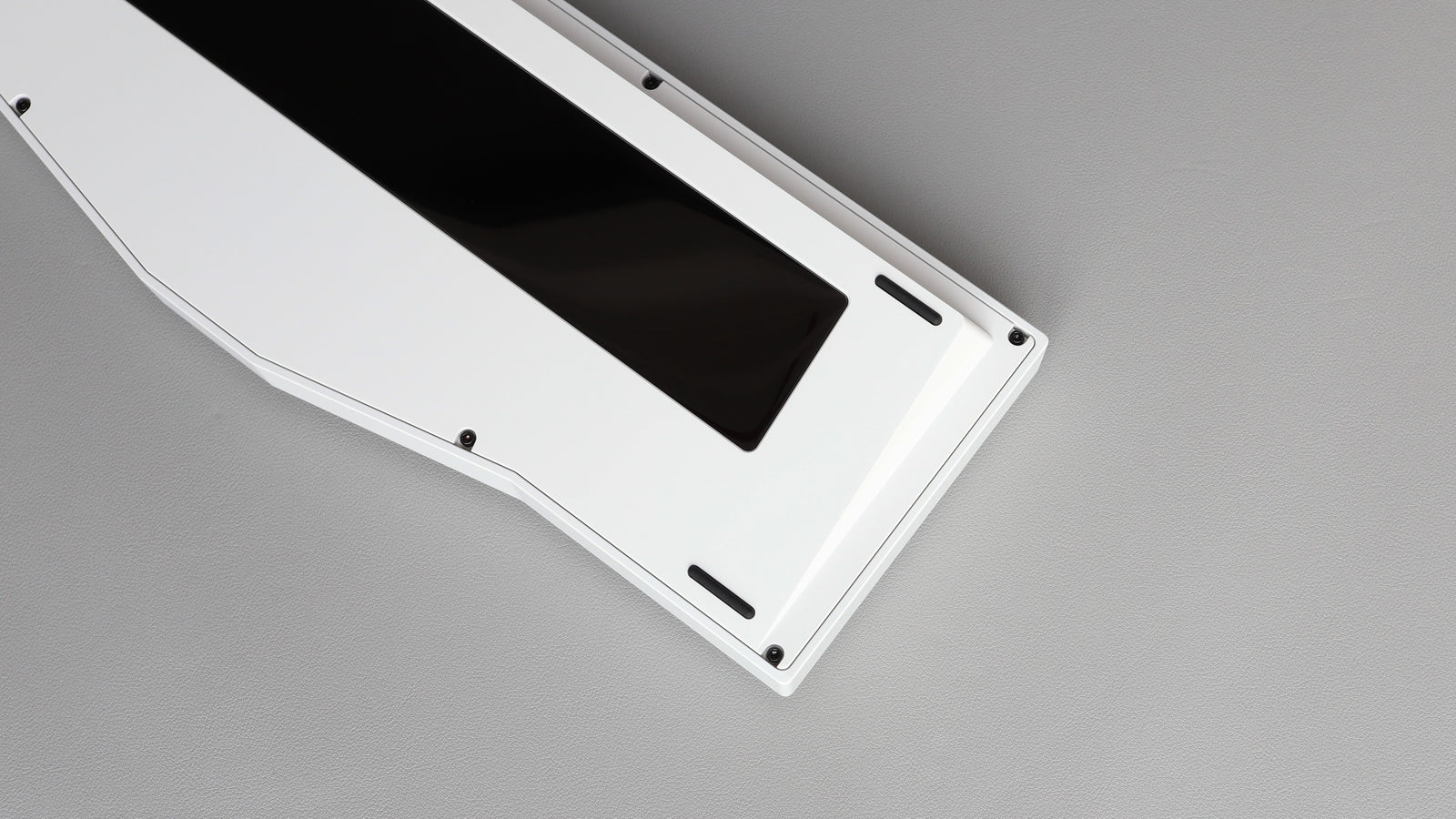

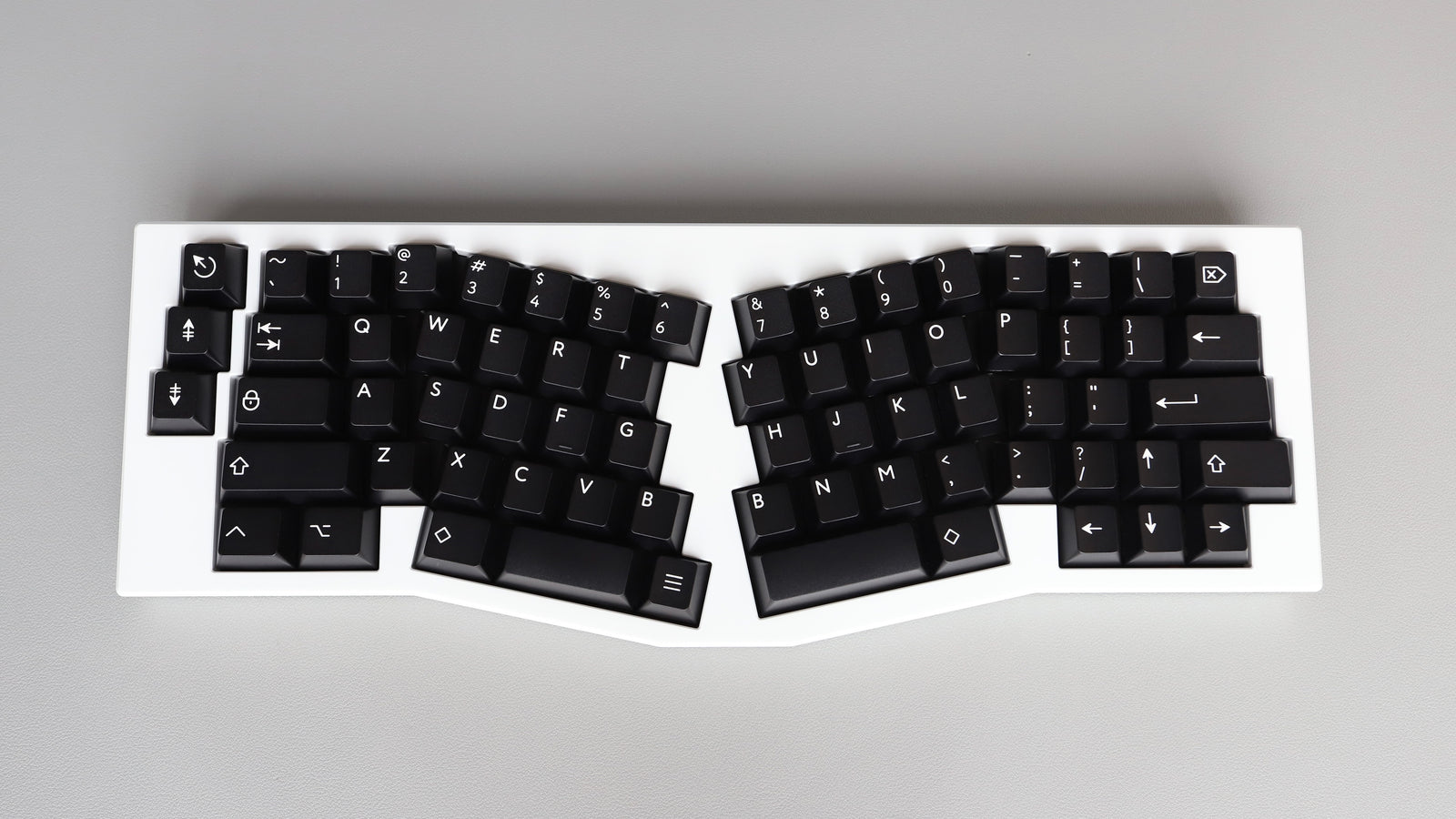

E-White [More]

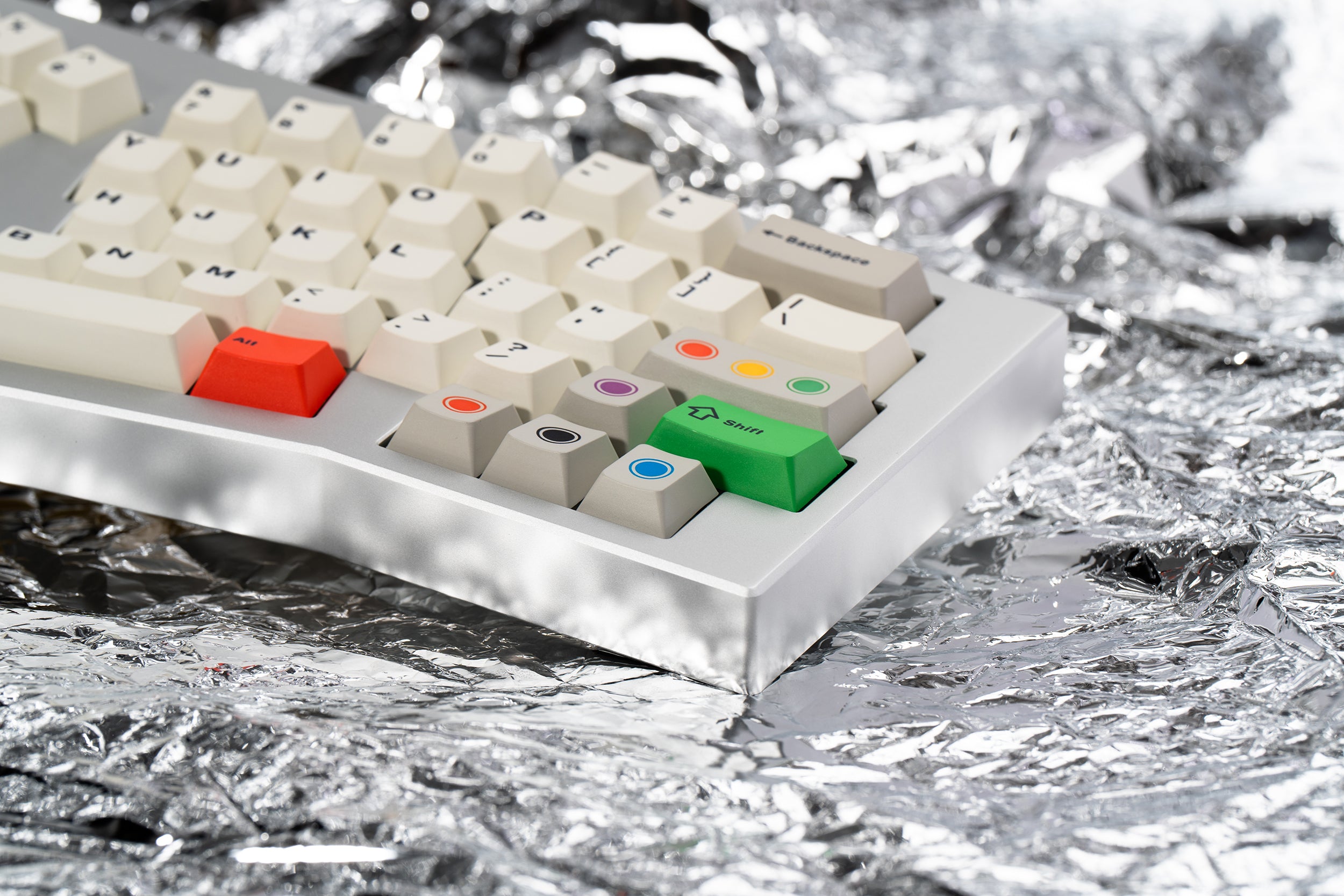

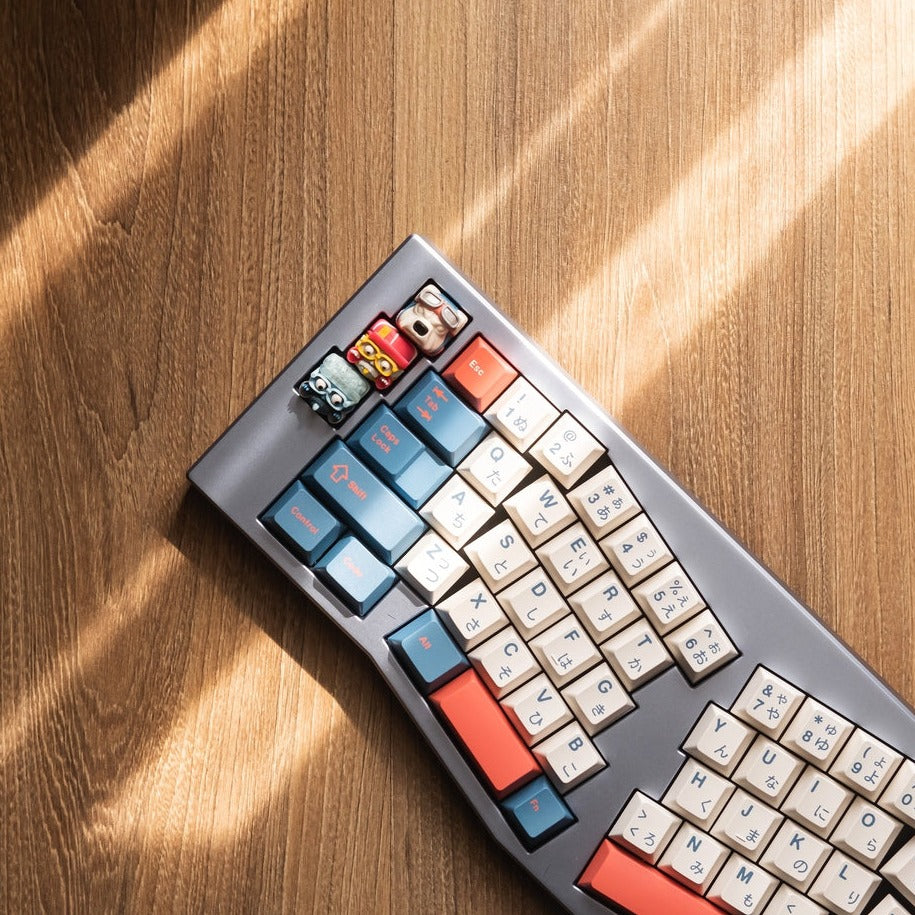

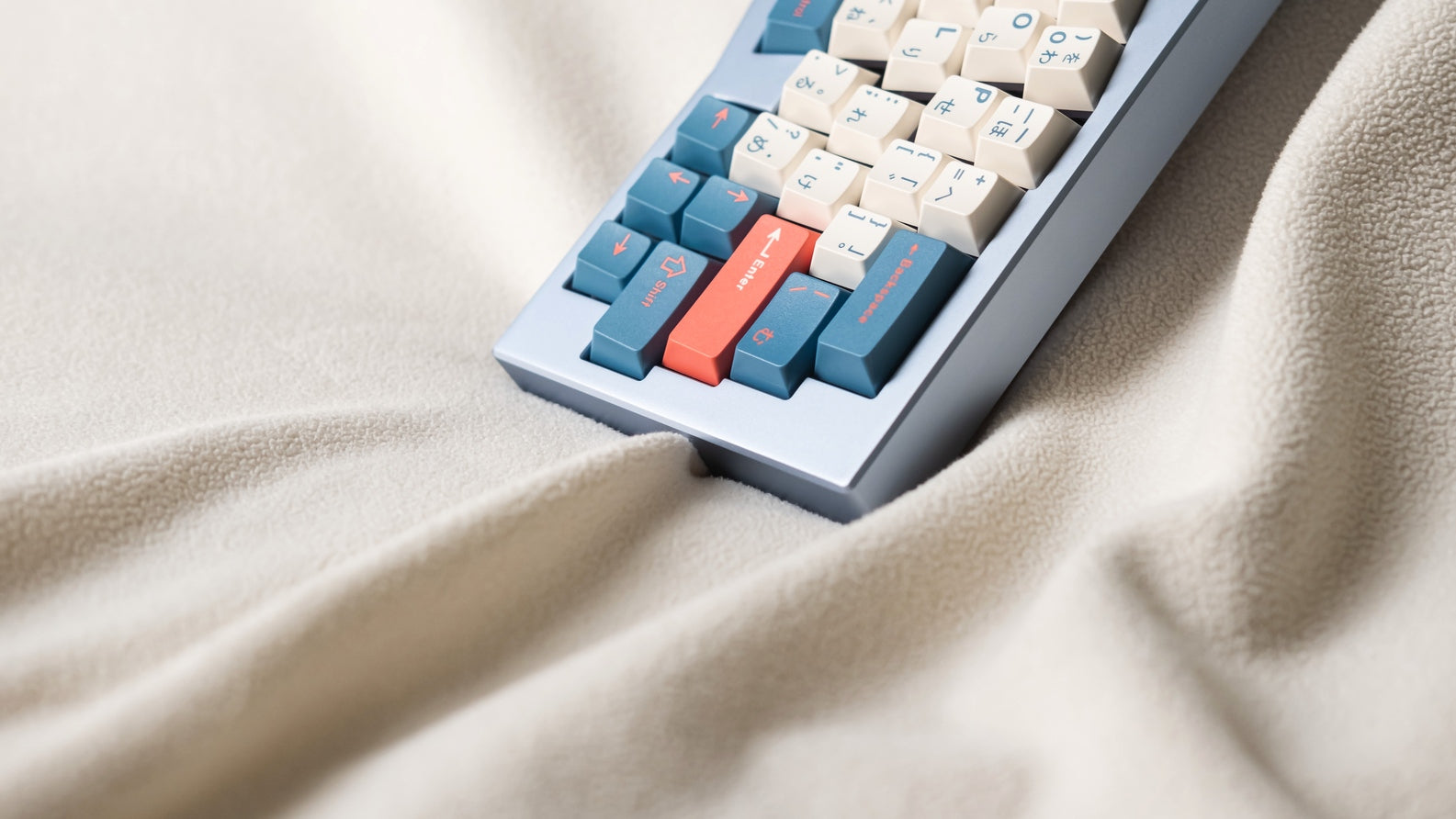

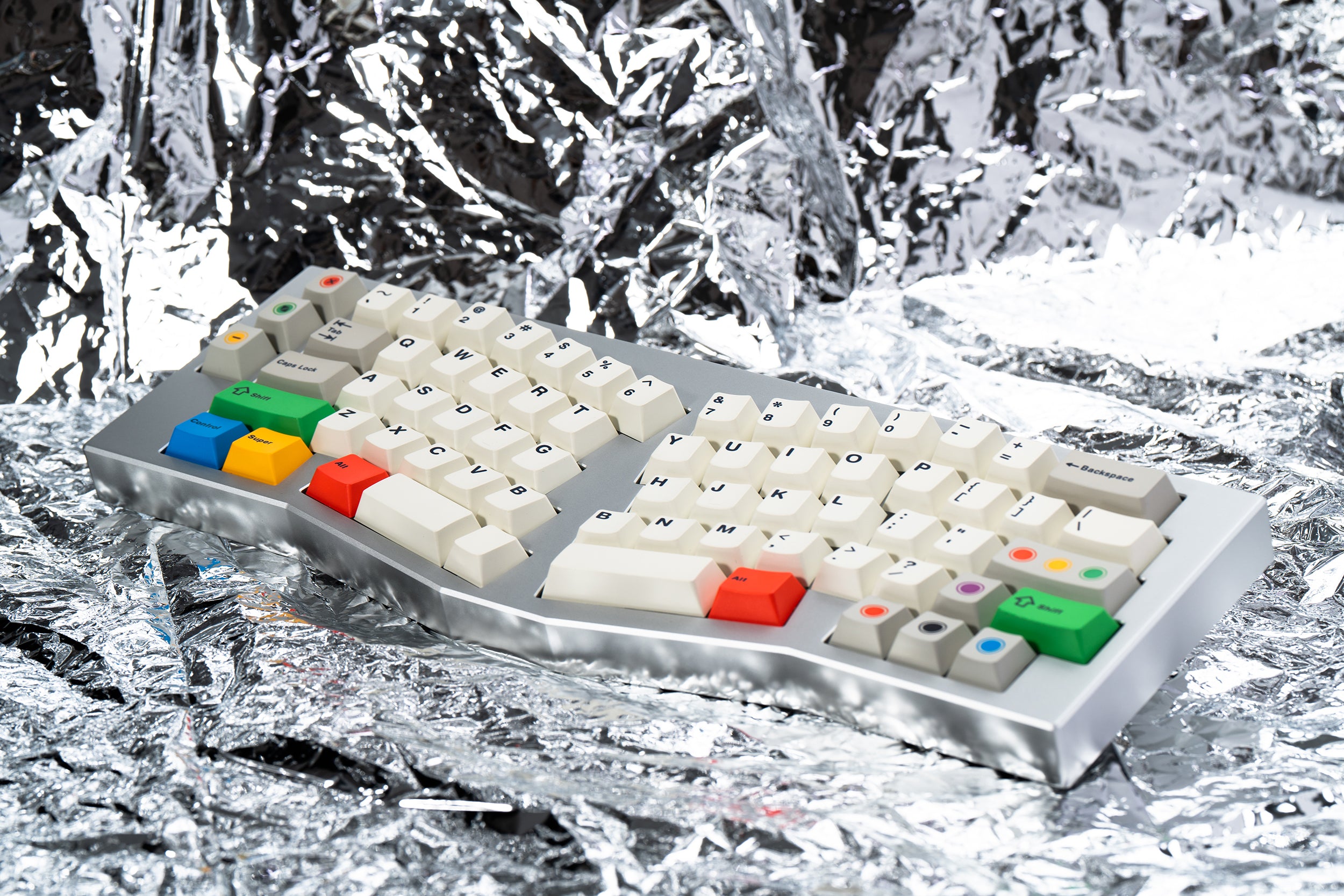

Silver [More]

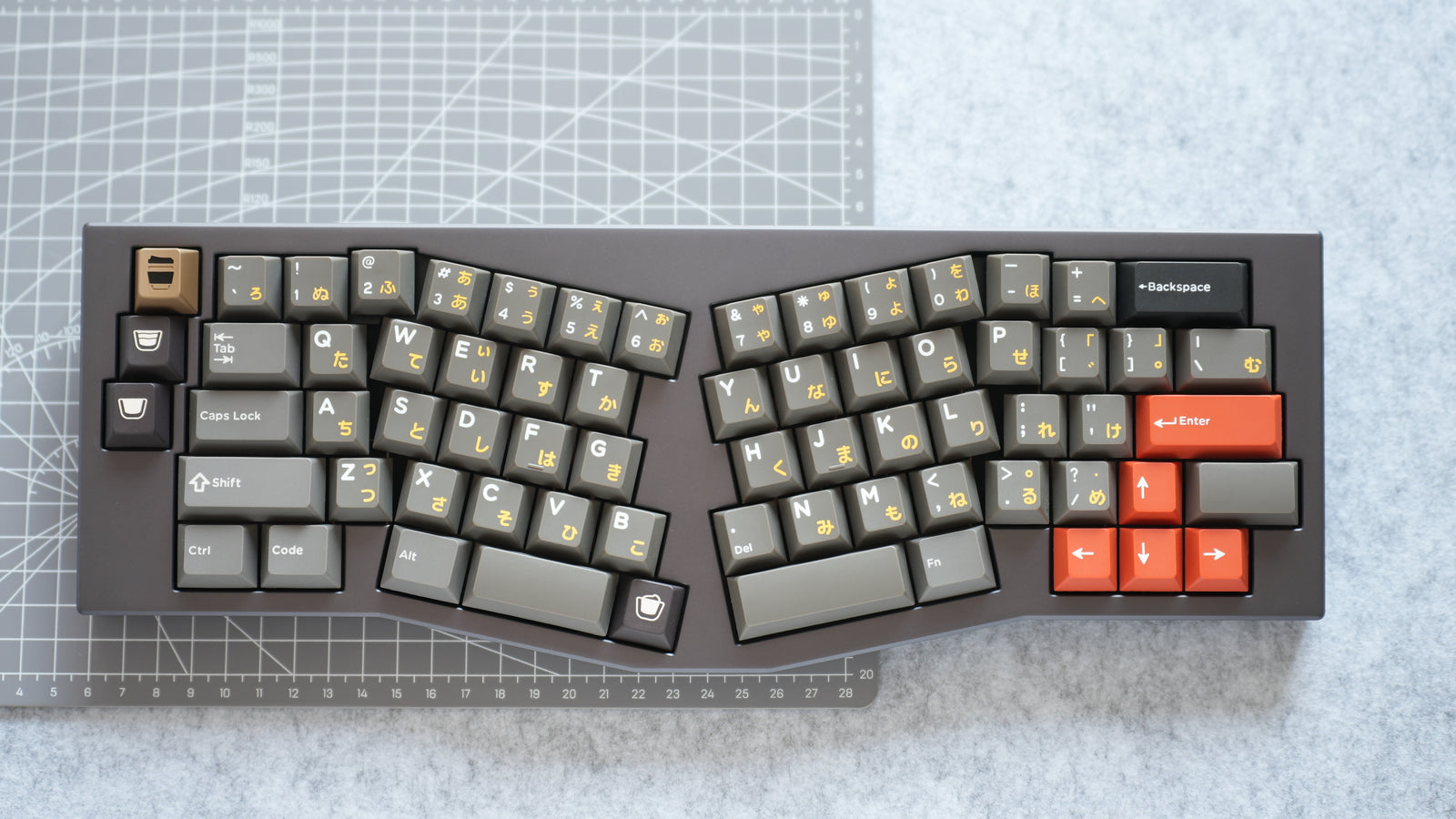

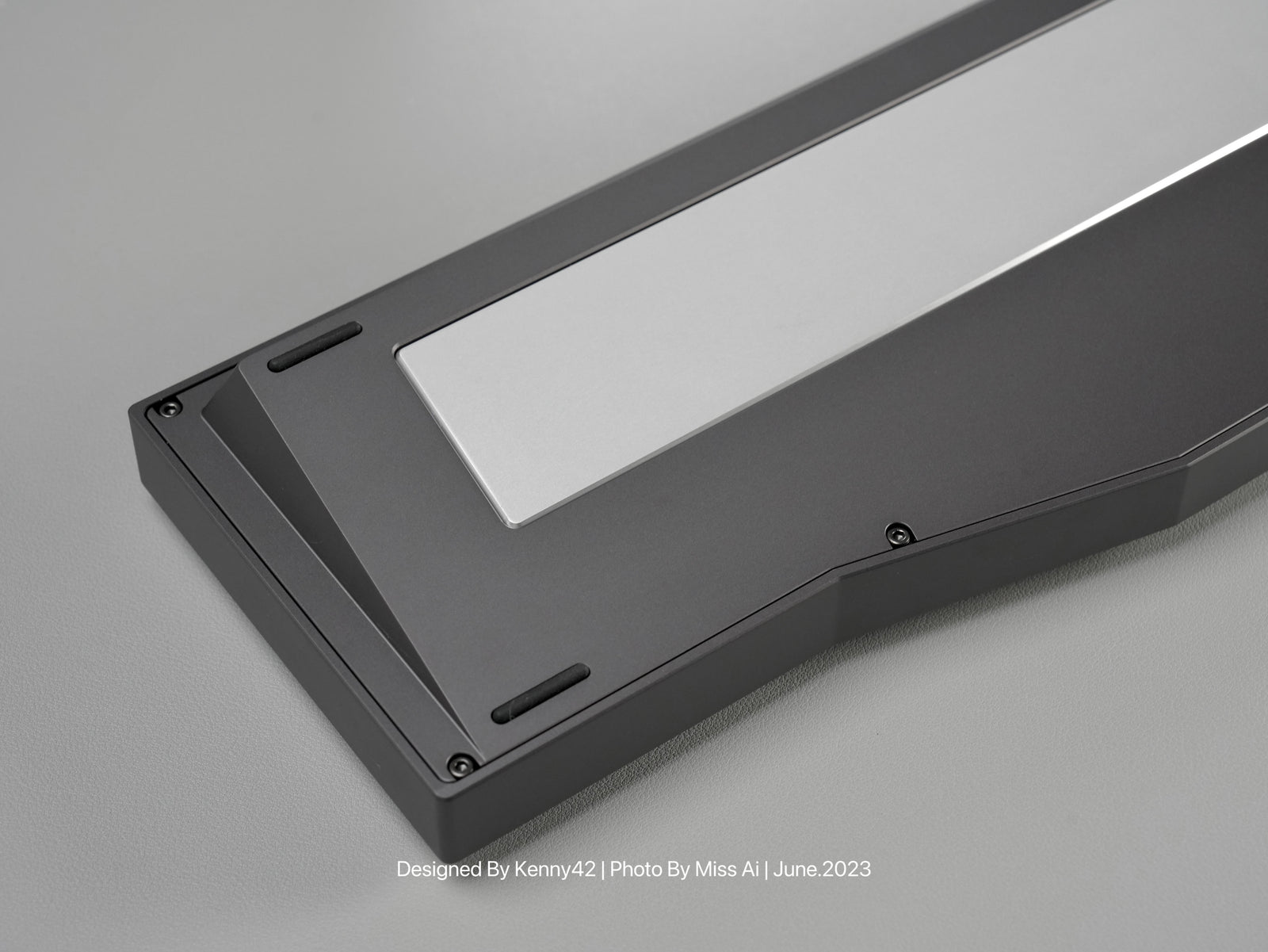

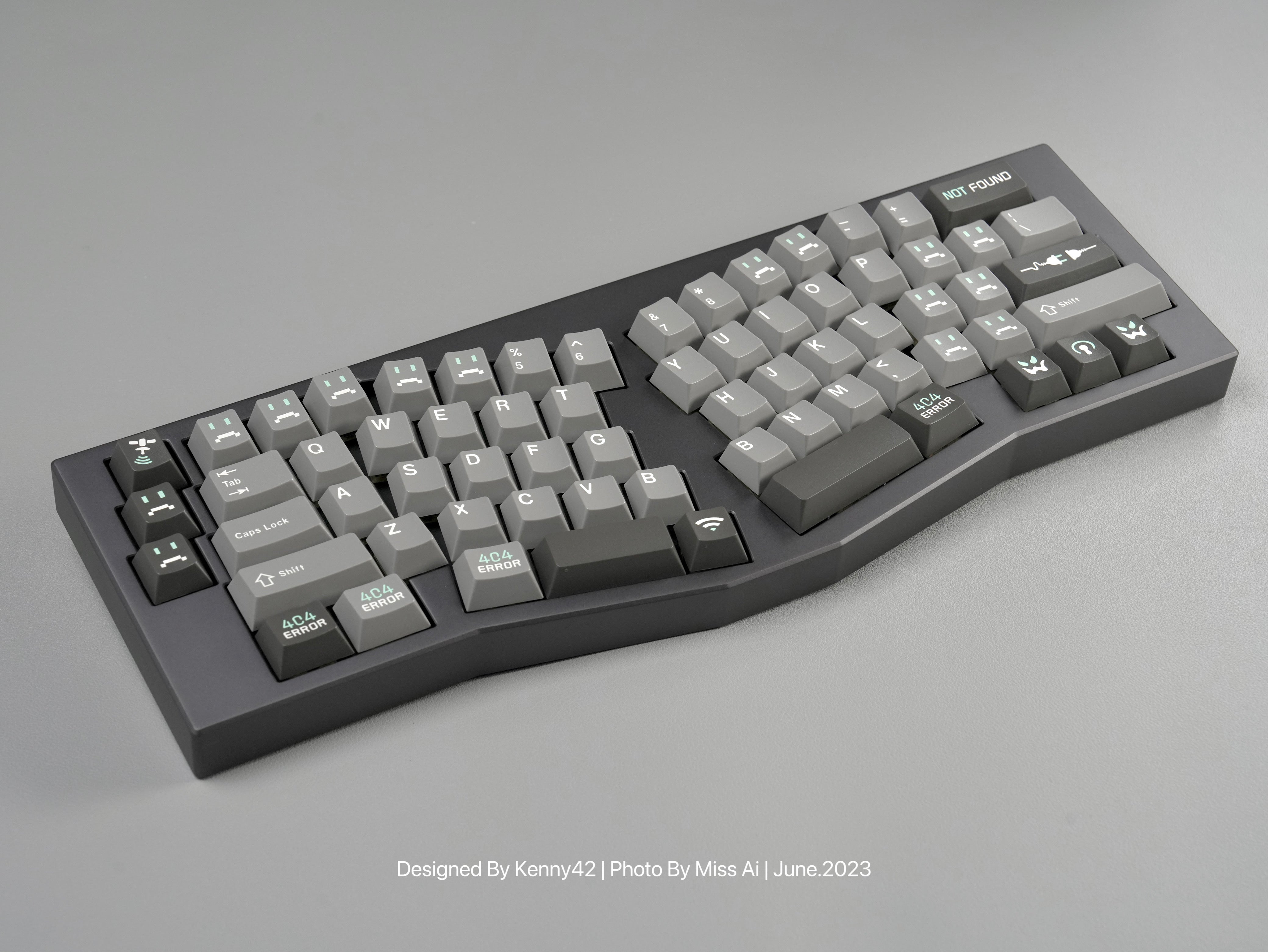

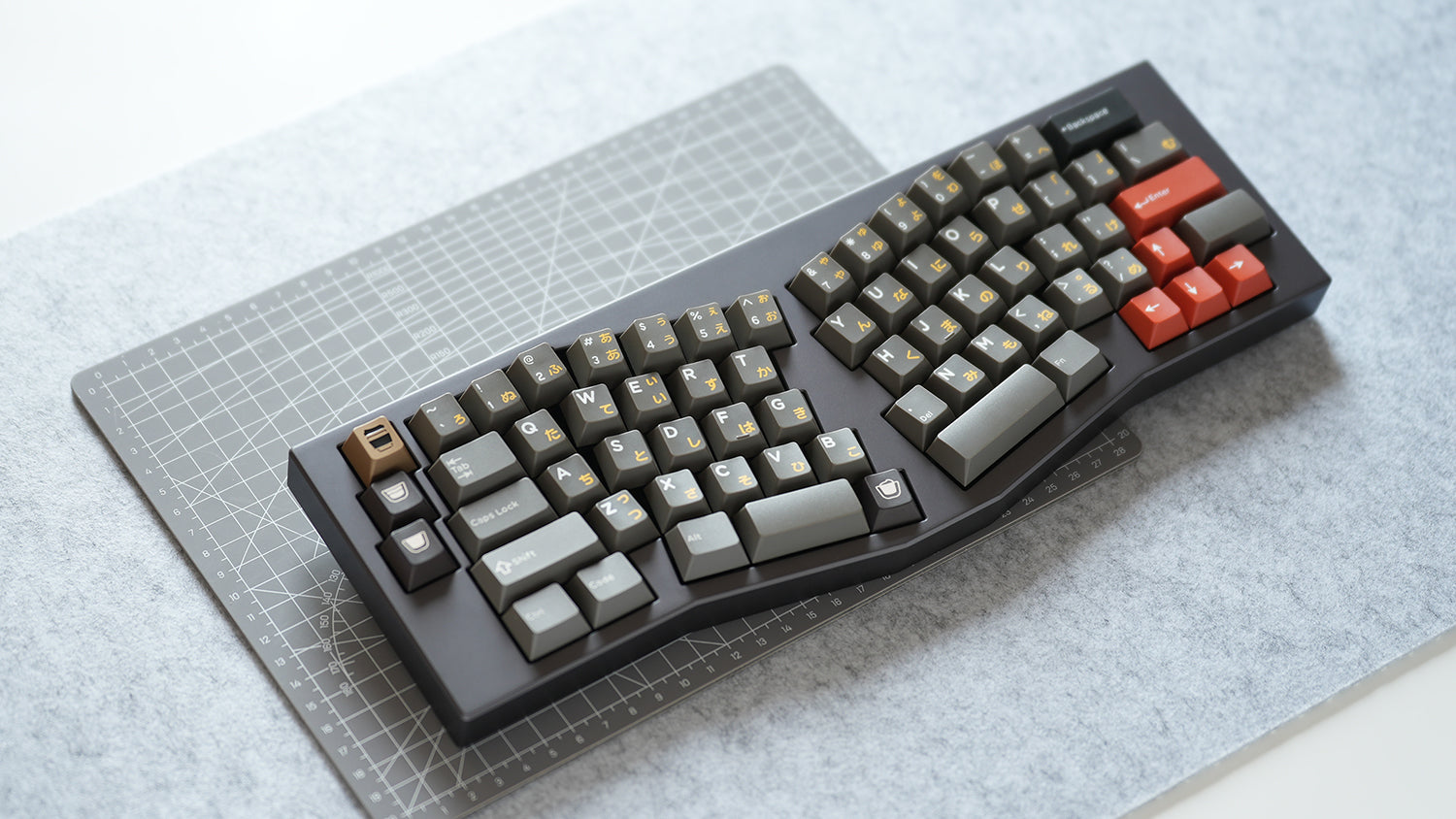

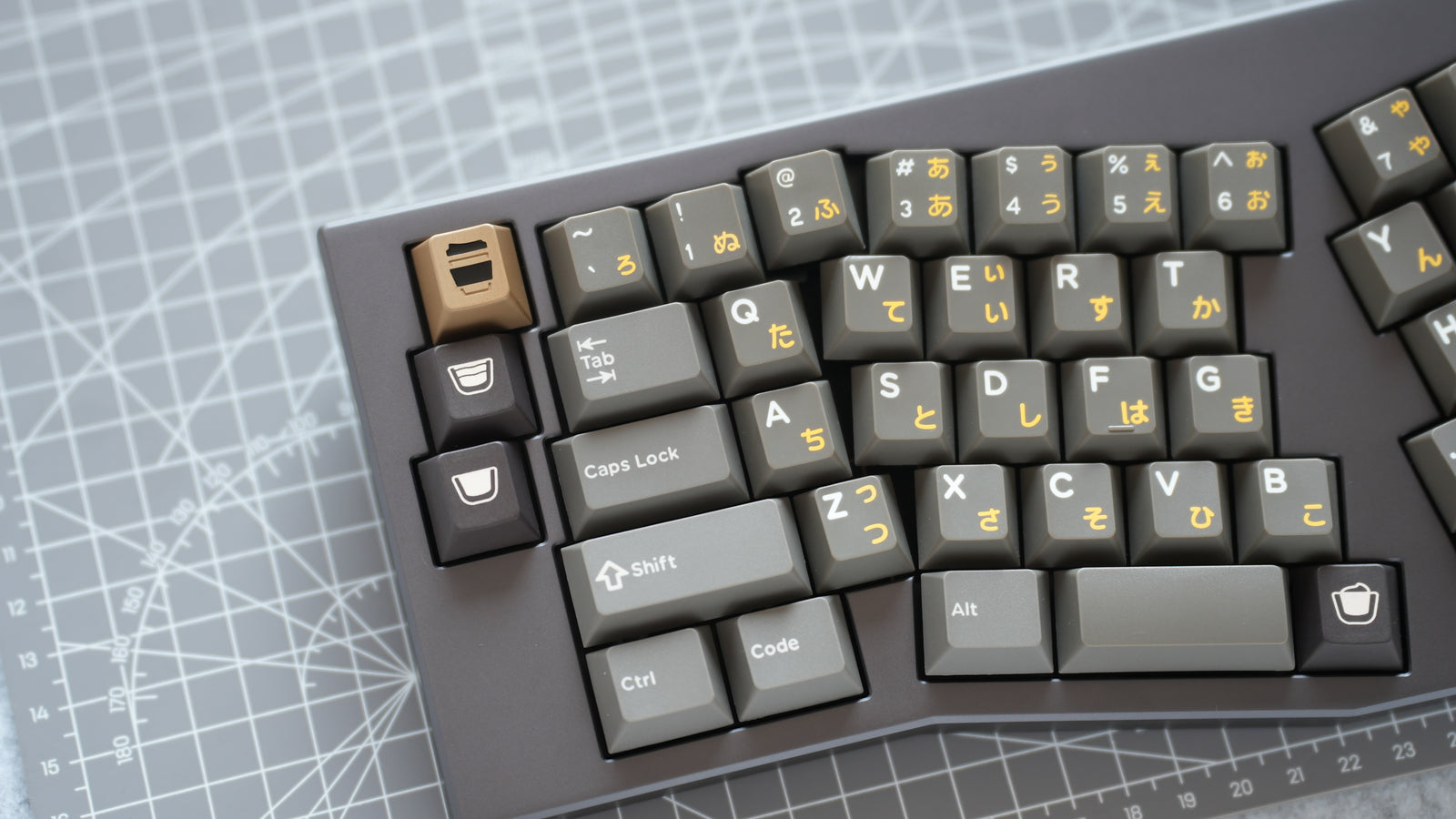

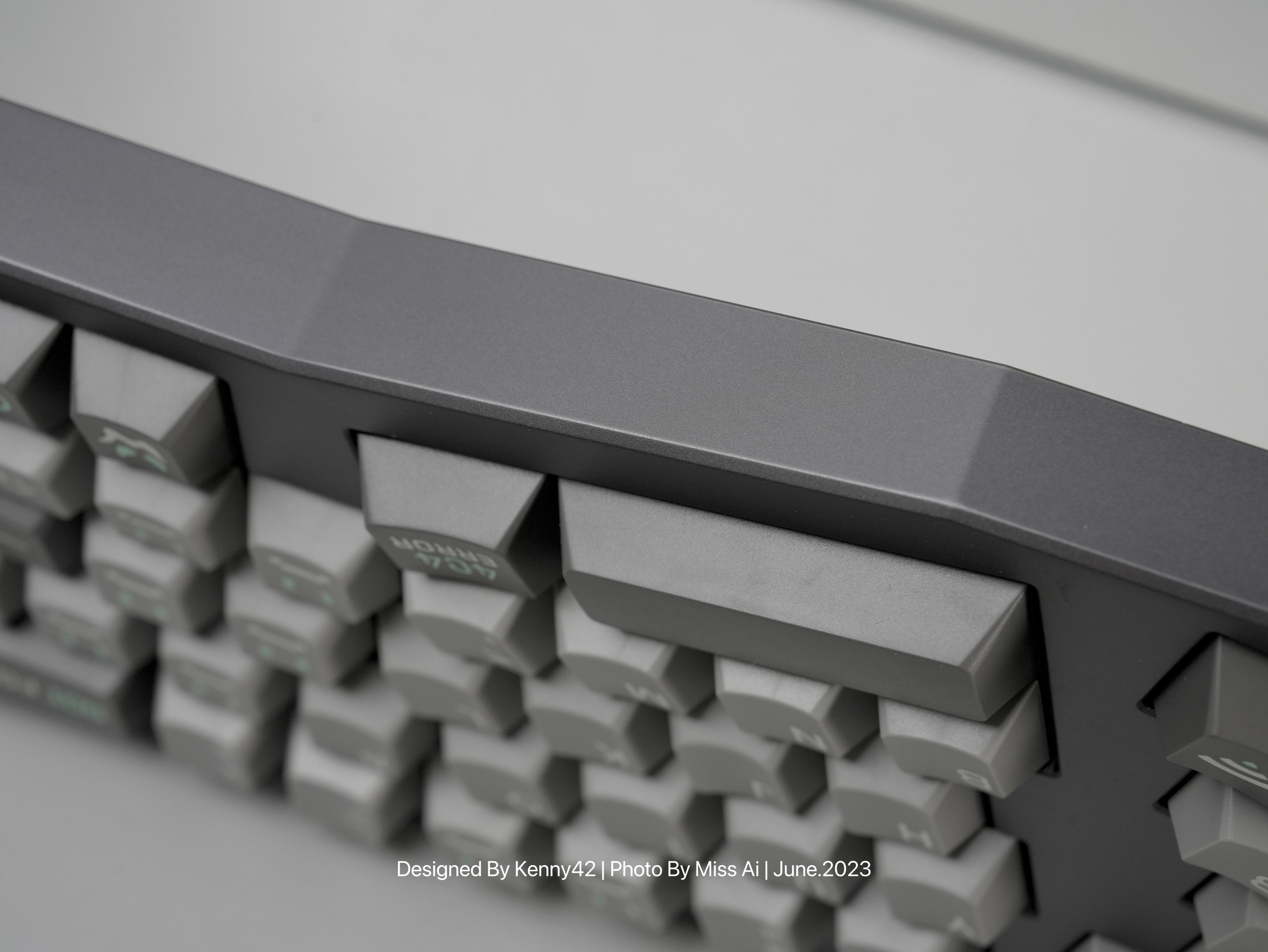

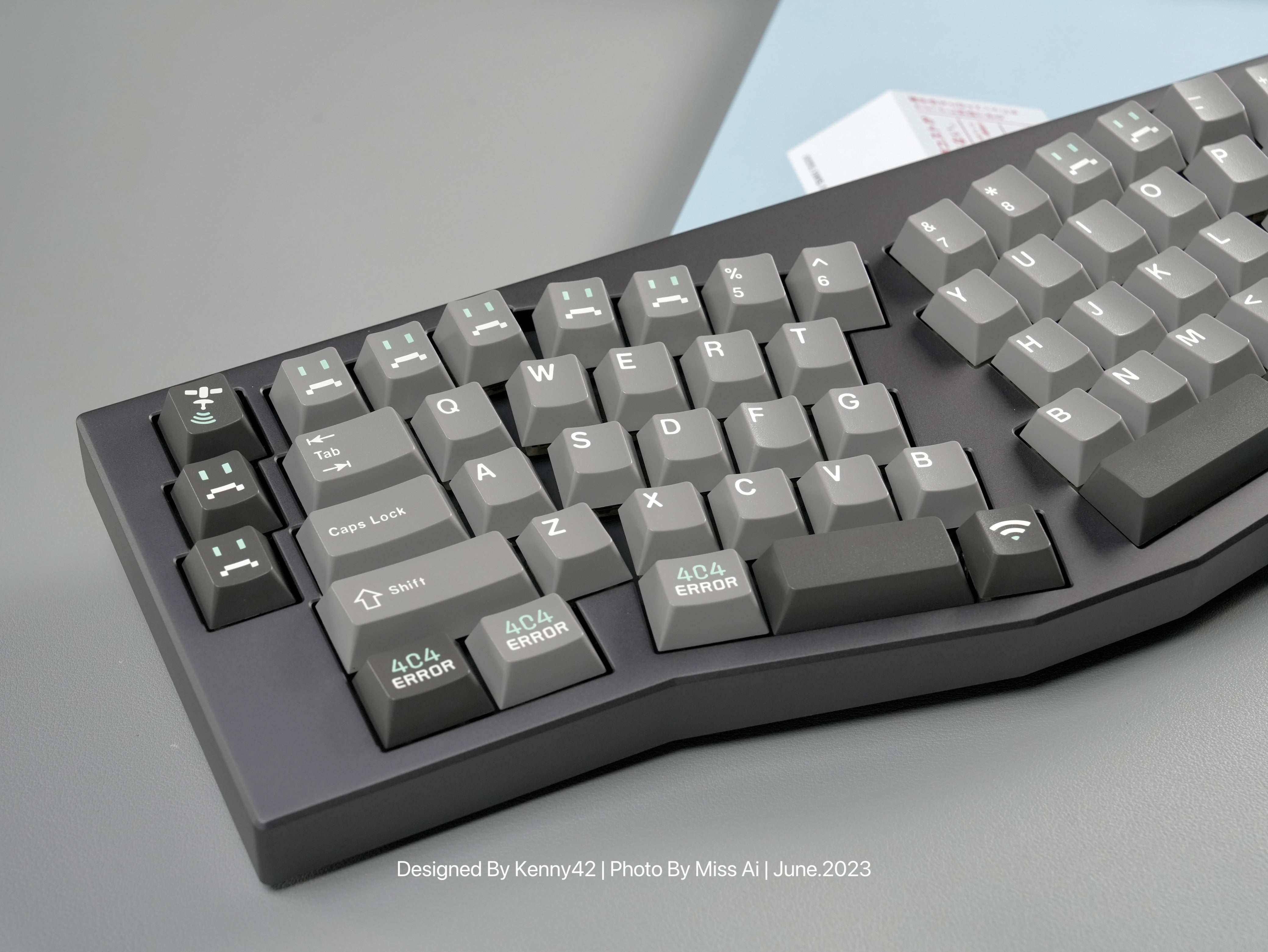

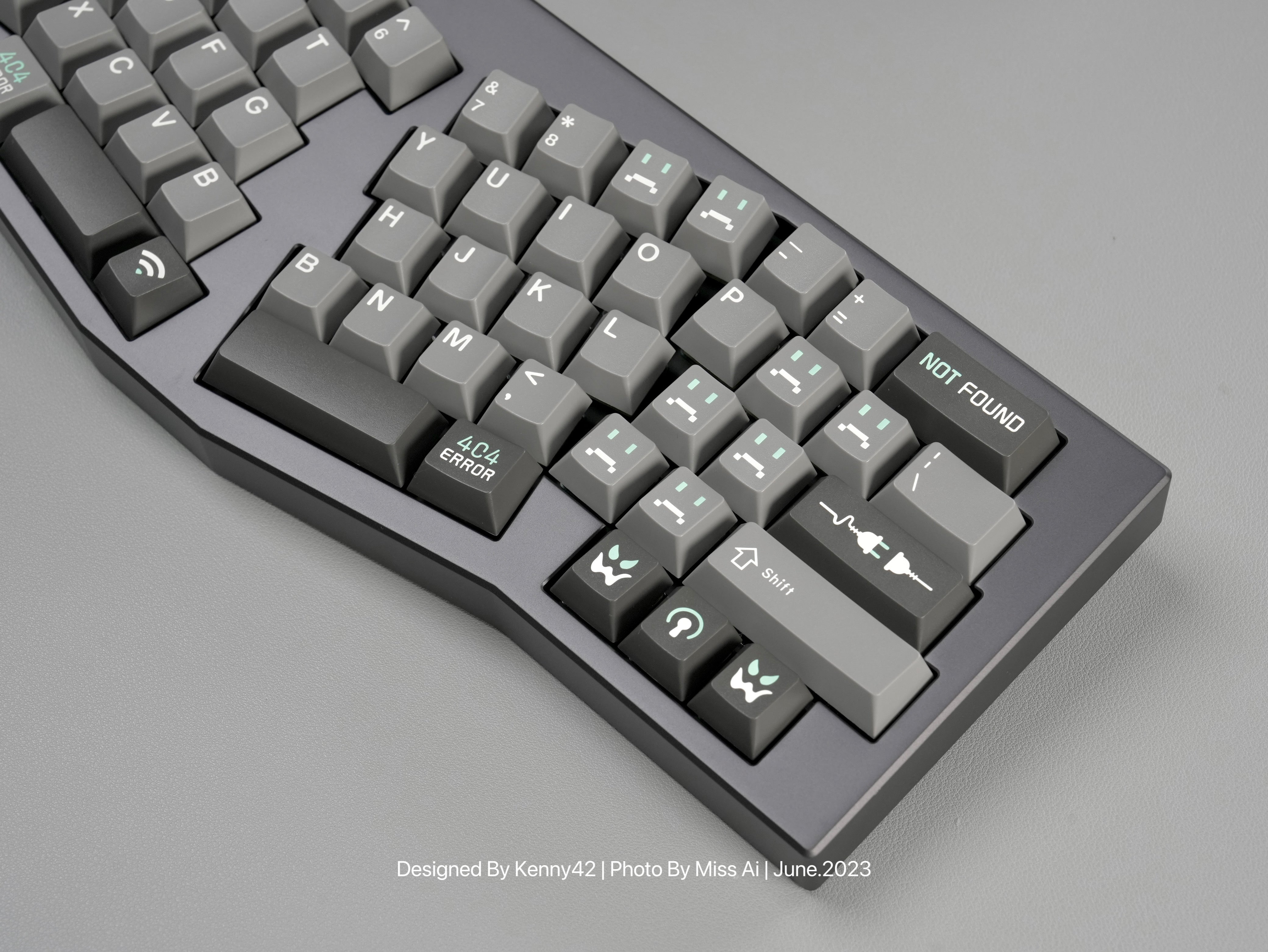

Gray [More]

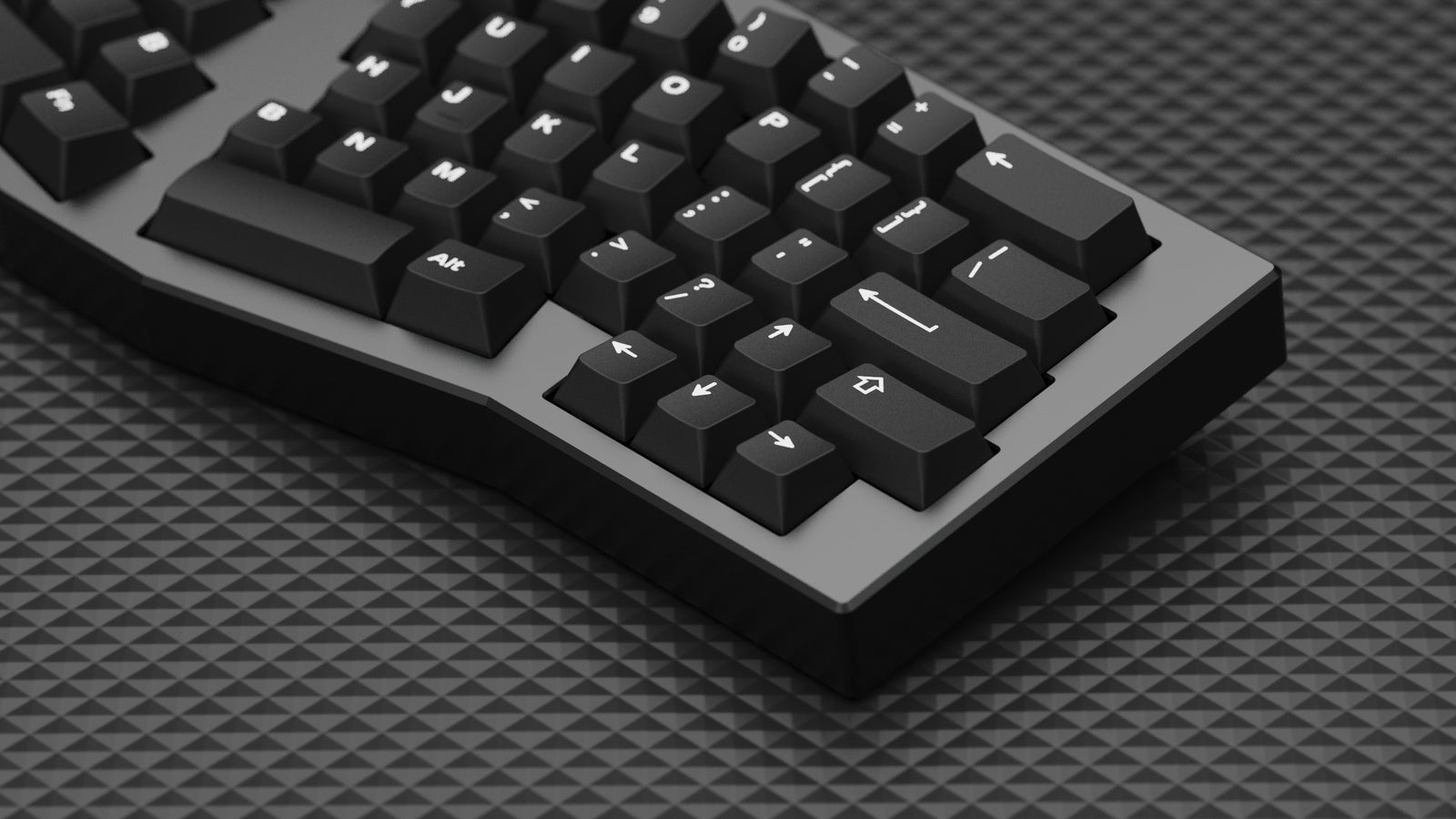

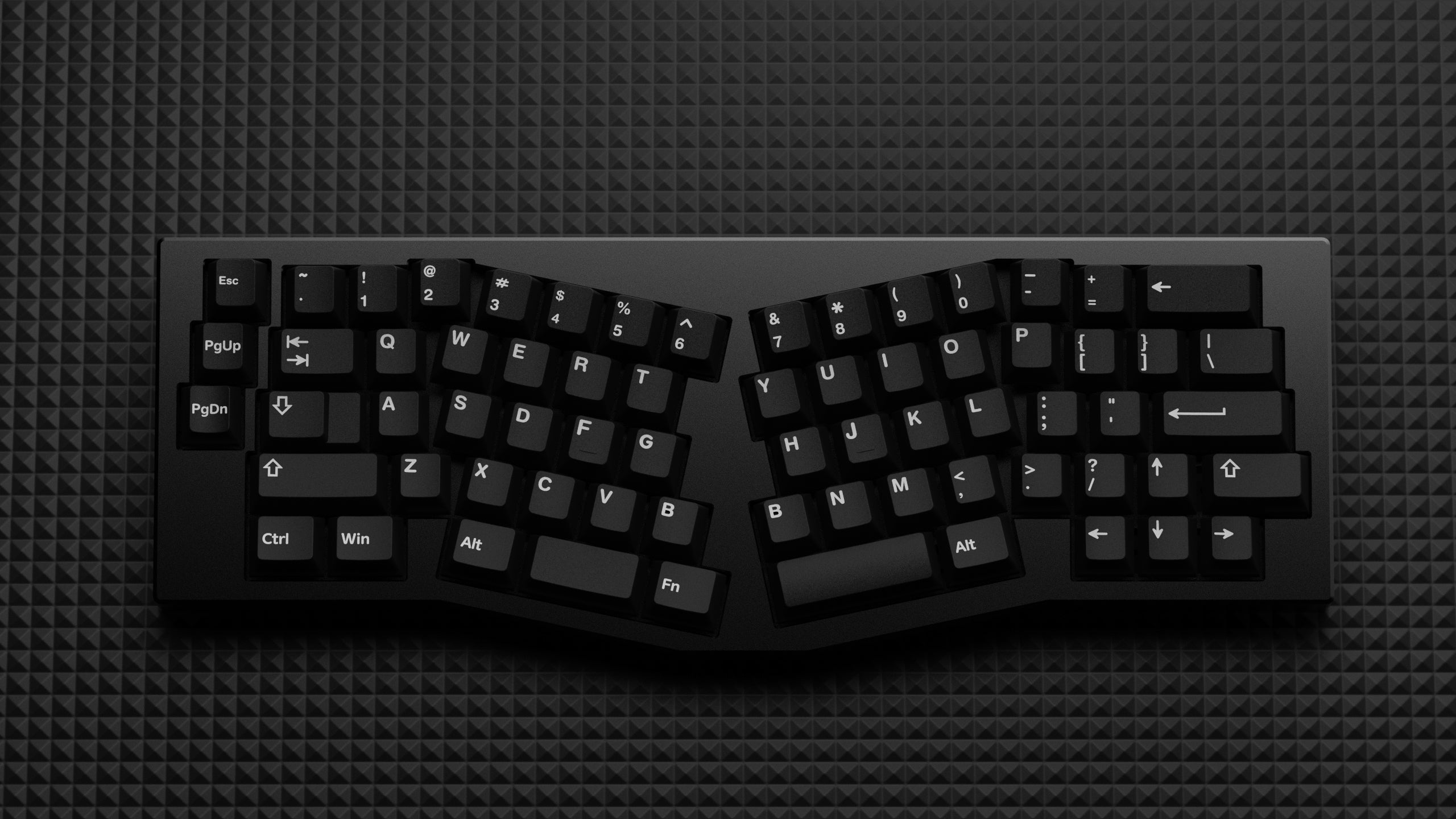

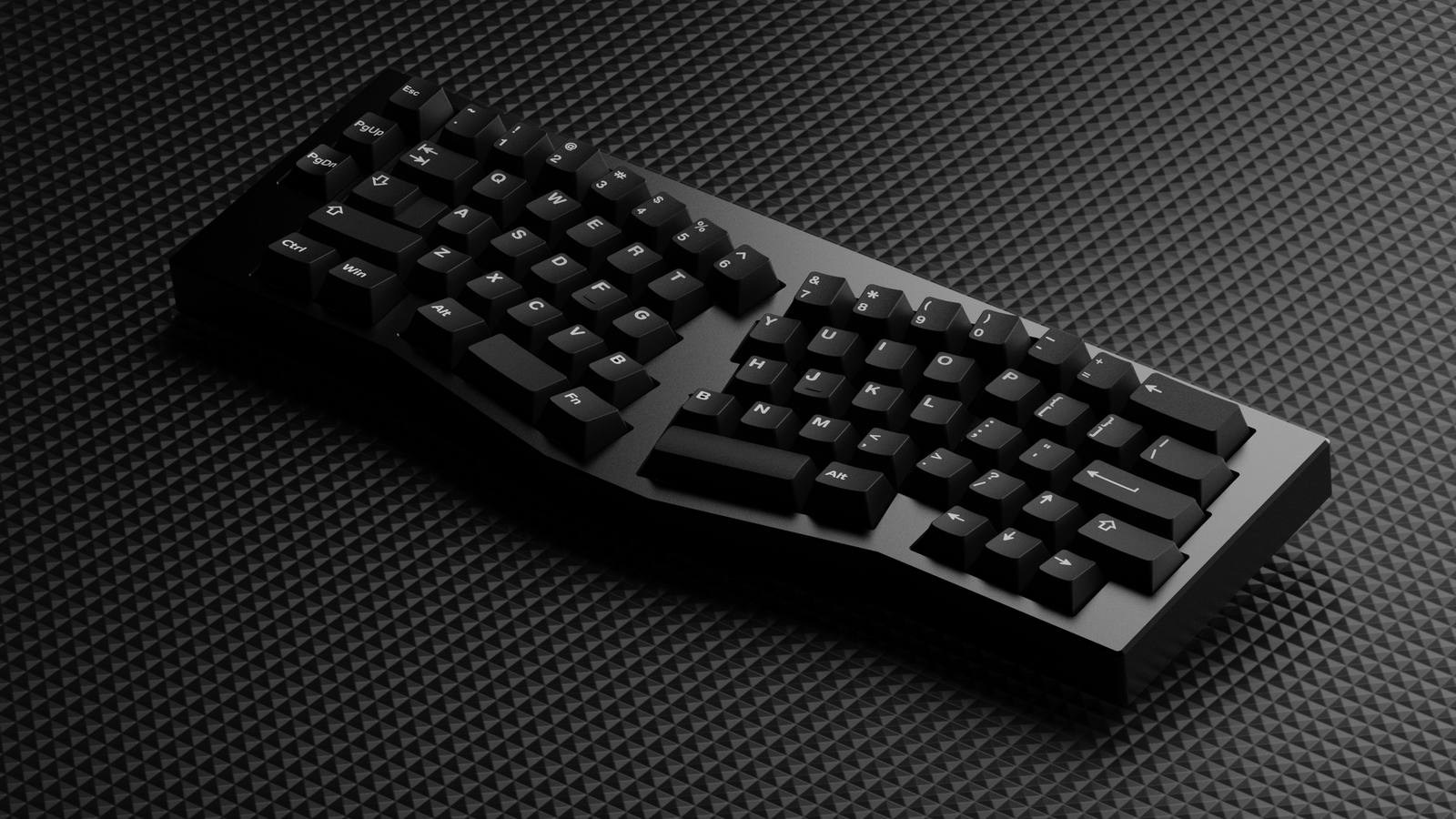

Black

Keylice 65% Specifications

Layout Alice 65%
Size356.89mmx 127.92mm x 35.71mm
Type angle8°
Front height18.95mm in the middle, 21.1mm on both sides (including the exposed part of the foot pad: 1.30mm)
Case material6063 aluminum
Surface process3.2-inch articulating touchscreen
Anode mesh150
PlateFR4
PCBHotswap/Solder

Features Of Keylice 65%

Dual-mode

Wired / Bluetooth 5.0

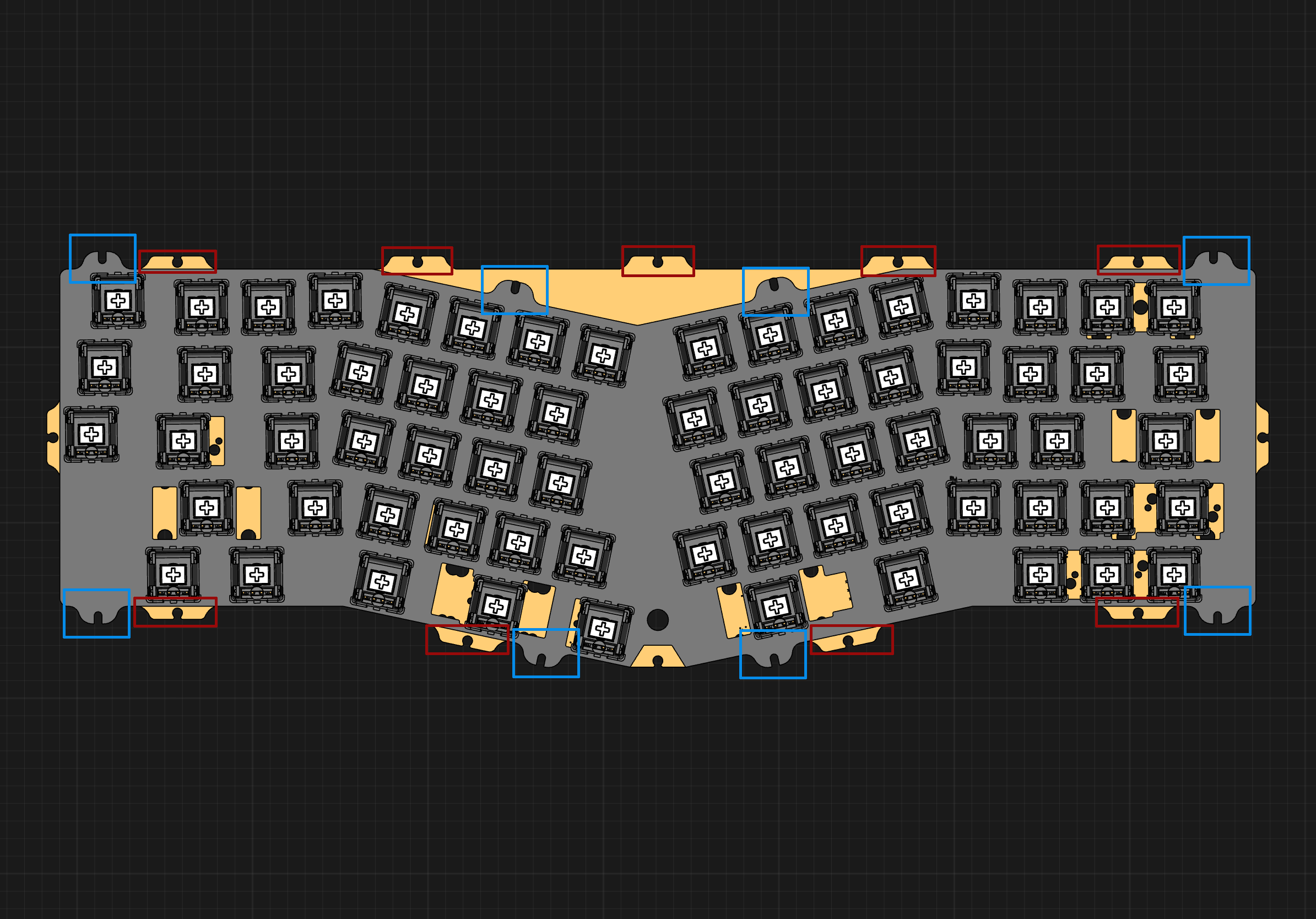

Multi-mount

Gasket mount : whole plate/half plate/plateless
Top mount: whole plate/half plate

Excellent surface process

Anode mesh number: 150

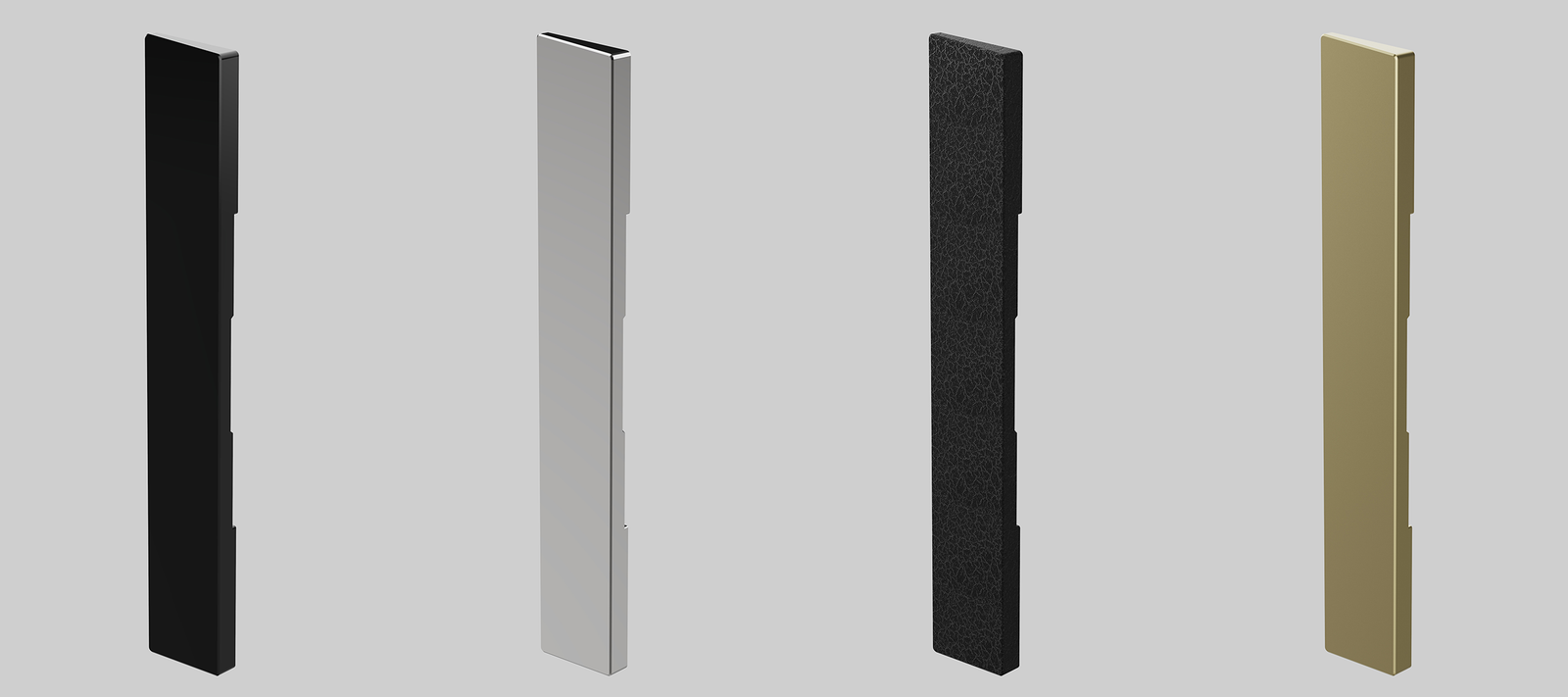

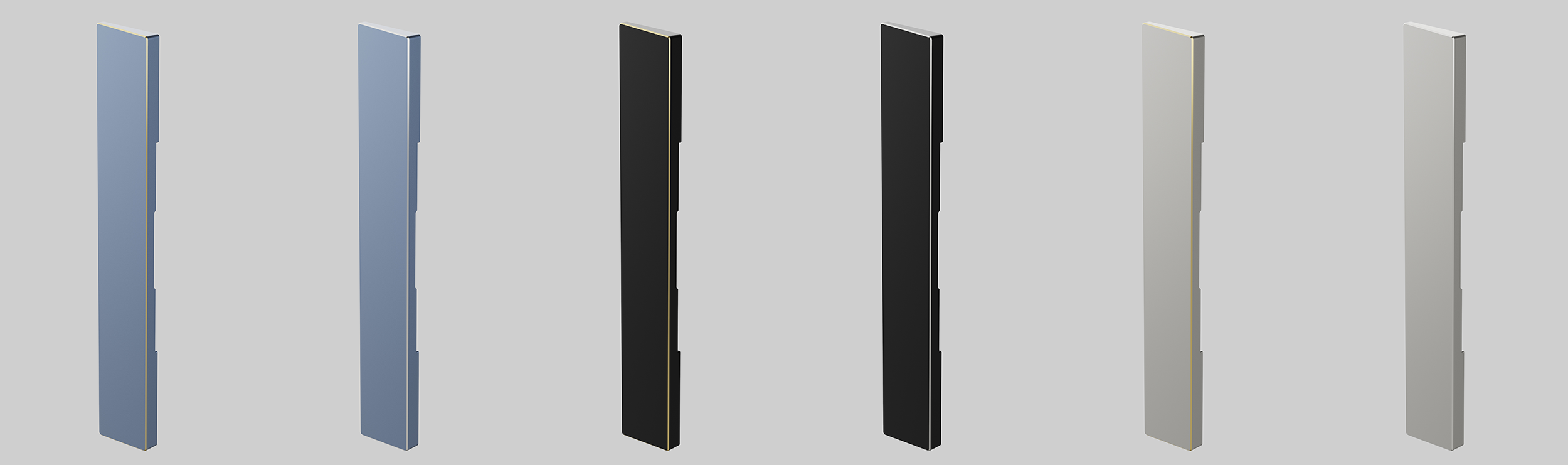

10 Kinds Of Weight To Choose

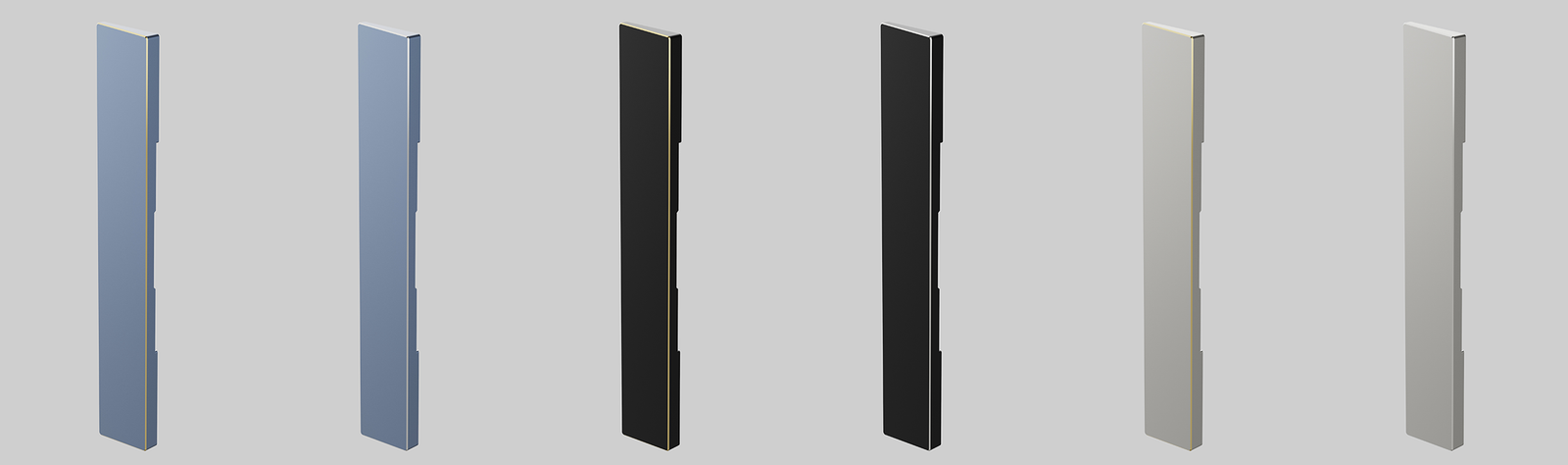

Regular Weight

Anodized aluminum (Black, Ice Blue, Silver) + High-gloss chamfer (Silver, Gold)

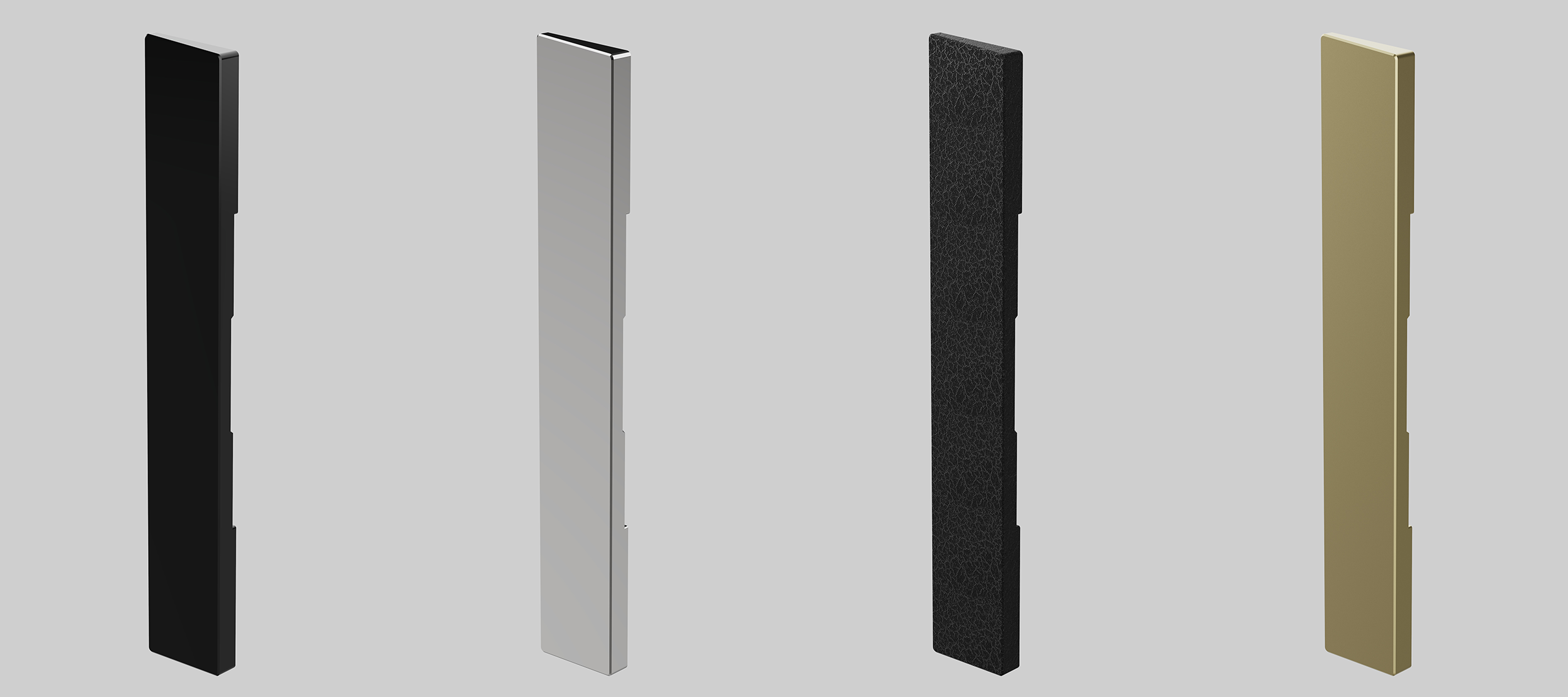

Premium Weight

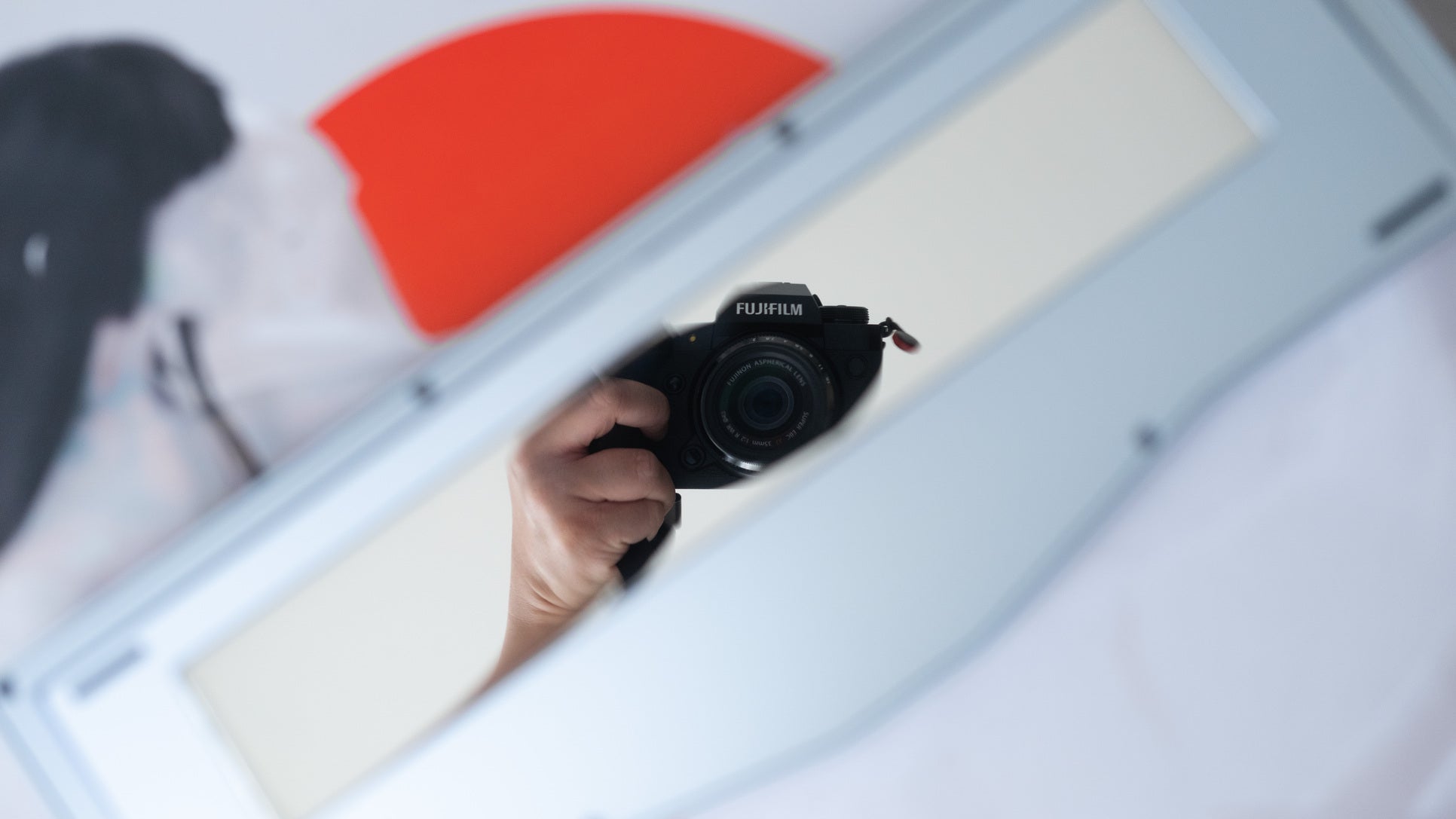

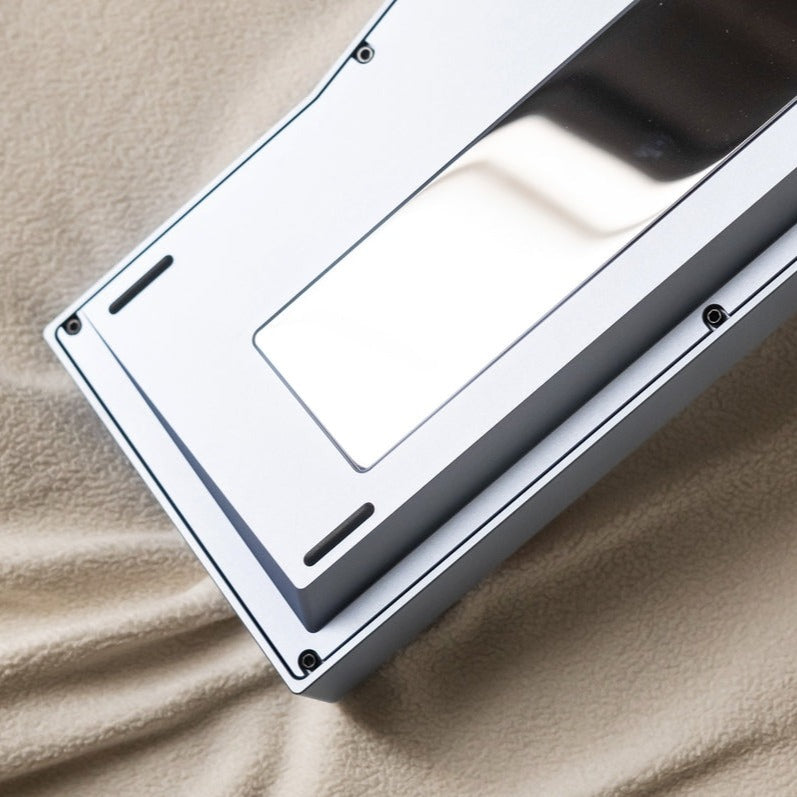

PVD stainless steel: Black, Silver
Black crack stainless steel
Sandblasted transparent E-Brass

Review

YBBK


Nearlucid


Nessasaurus


Febust


edwardtanujayaa

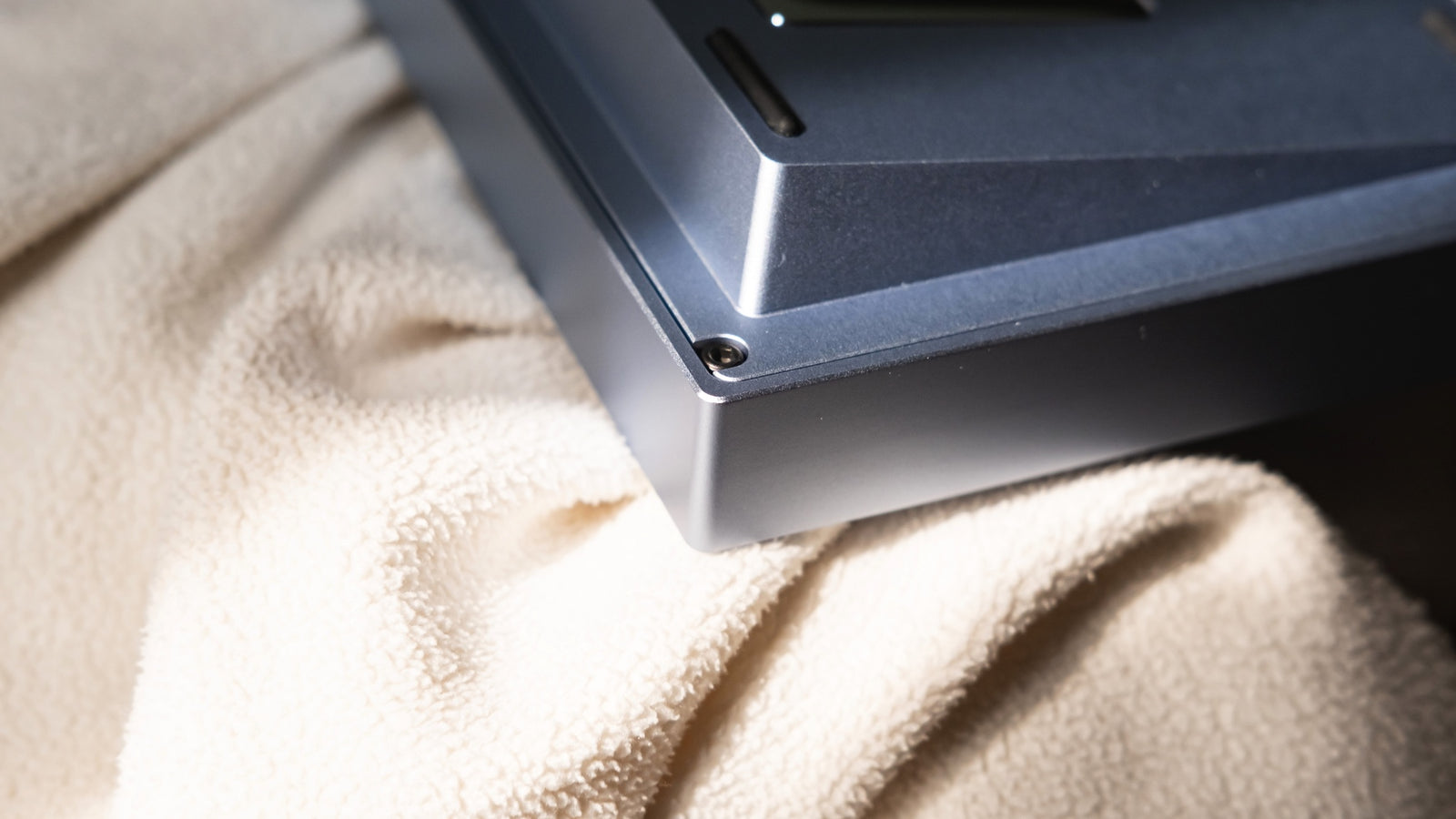

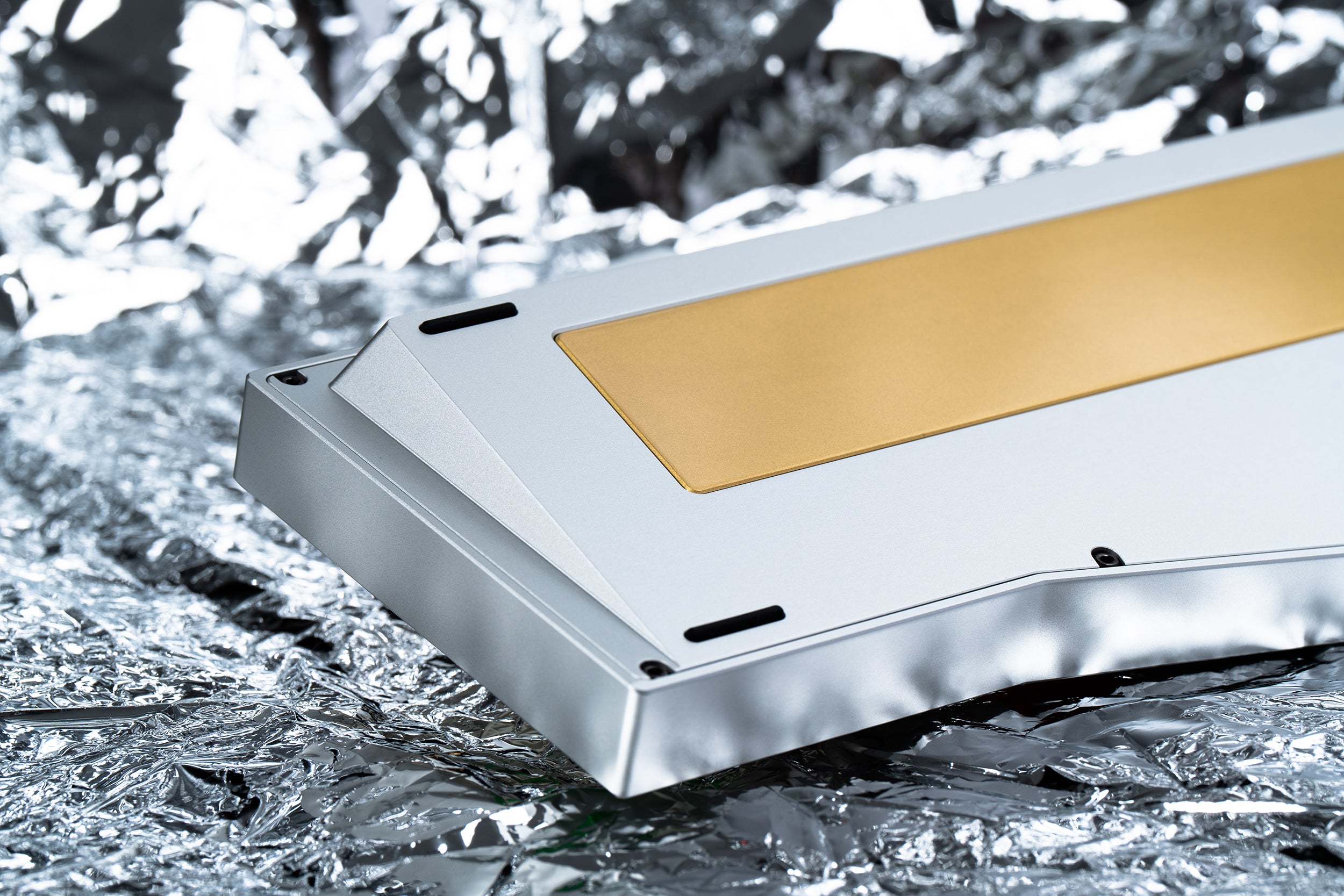

Ice Blue+Silver PVD Weight

We will keep update the reviews here, please stay tuned!

Other Videos

Unboxing & Assembly & Sound Test (E-White)

Assembly & Sound Test (E-White)

Assembly & Sound Test (Gray)

PCB Features

  • No felx cuts
  • PCB thickness: 1.6mm
  • Bluetooth solution: Lotlab solution
  • Connection method: wired, Bluetooth 5.0
  • Switches installation method: Solder, Hot-swap
  • PCB material and process: imported black core immersion gold transparent ink
  • Key layout: multi-layout Alice ( both hot-swap and solder PCB support multi-layout)

Layout

  • Support Split Backspace
  • Support Stepped Capslock
  • Replaceable Arrow keys
  • 2.25U Spacebar + 1U Fn can be changed to 2U Spacebar+1.25U Fn


Explosion Diagram



The difference between GB products and prototypes

  • GB products have larger weight chamfers.
  • Changed the shape of the screw fixing place of the plate.
  • The rgb patch light is transferred from the original "~" key to "caps" key.
  • For prototypes, the Top mount is pre-installed with 0.3mm gaskets to ensure that the structure does not conflict. This will be further improved in the GB, and it can be used without gaskets.


Kit Content

  • Case*1
  • Weight*1
  • PCB*1
  • FR4 Plate*1
  • Poron pad between PCB and plate*1
  • IXPE pad*1
  • Poron bottom pad *1
  • PC battery compartment cover *1
  • Insulation pad*1
  • 3000mAh battery*1

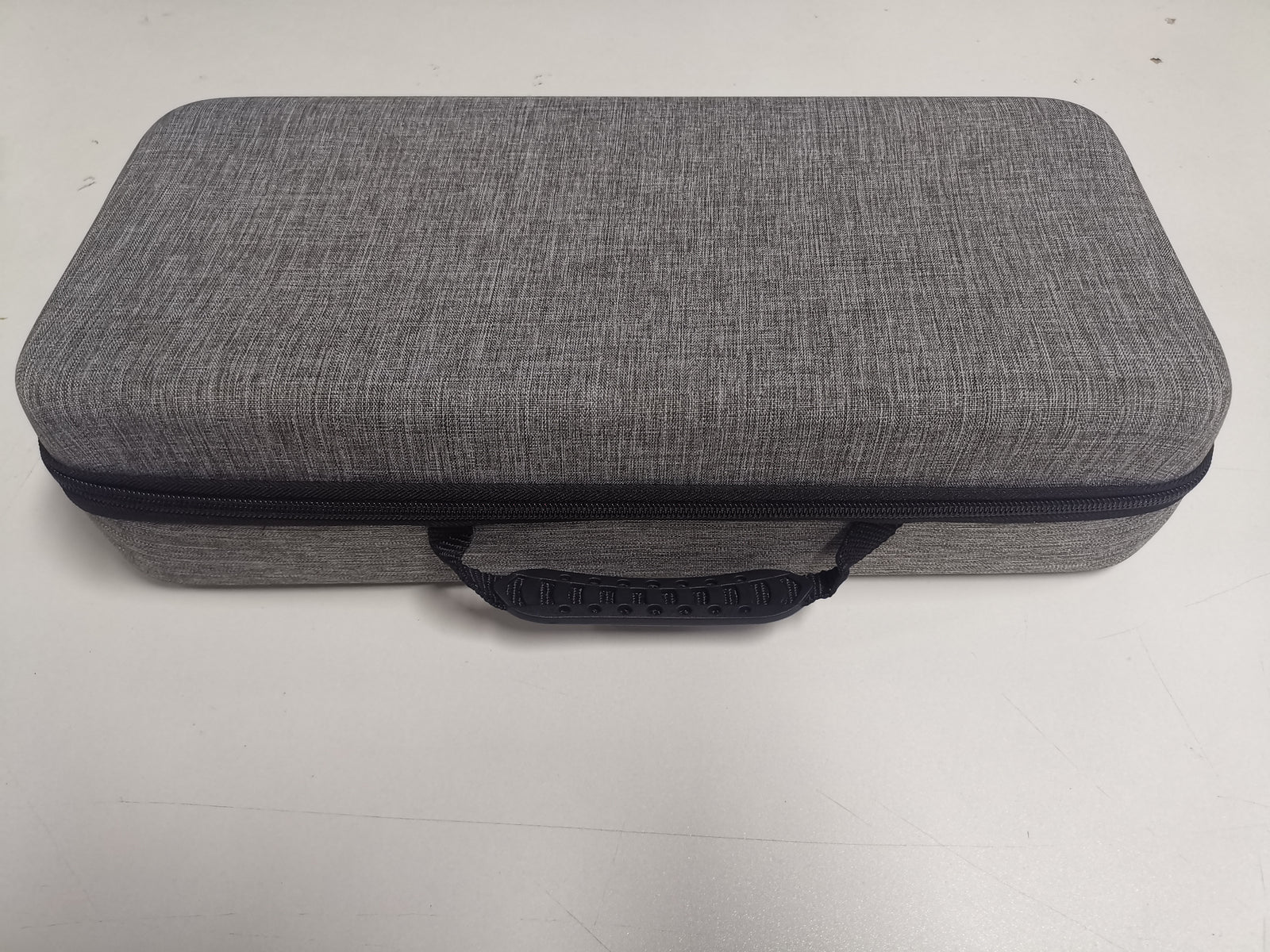

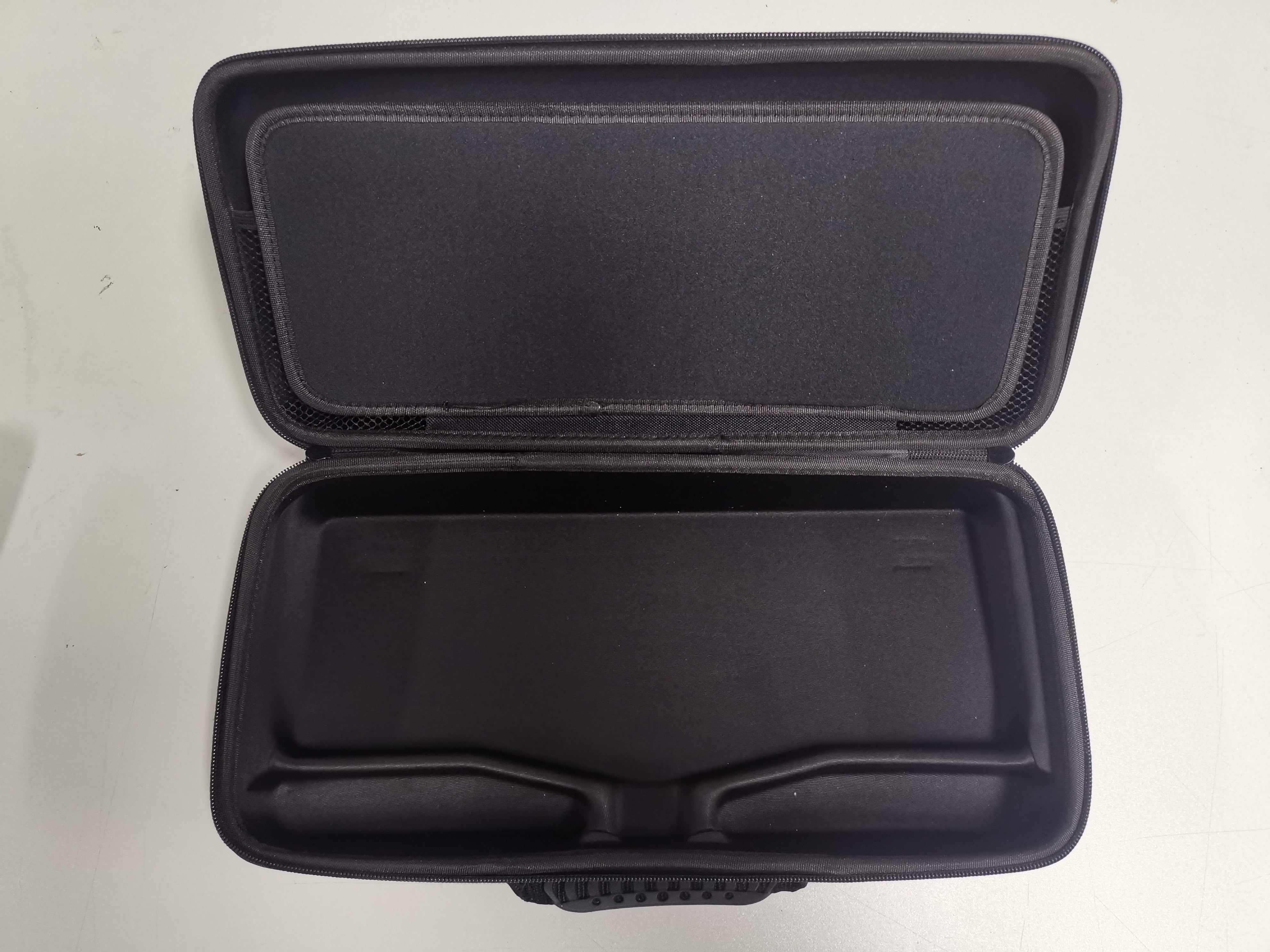

  • Keyboard carry bag*1
  • Foot stickers*2 sets
  • Silicone cushioning granule
  • Screws

Software & Files (TBD)

Build Guide

Mac / Windows


Software like VIA: Lotlab solution
(
Click the drop-down arrow in the upper right corner to switch the language to English.)

Disclaimer

Please read the disclaimers below before purchasing the product.

Purchase Disclaimer

  • Keylice keyboard is a GB item. Estimated shipping date is 2 months after GB ends. Delays and setbacks may occur. You agree to these terms by default when purchasing.
  • There will be a 5.4% + 0.3 Paypal process fee on order cancellations and refunds after placing an order.
  • The shipping fee doesn't include import tax fee.
  • GB item will not have order combination. Please place only one order.
  • No refunds or cancellations after the GB ends.
  • You cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.
  • You cannot combine this group buy order with a previous order as we cannot hold on to an order until the other one arrives.
  • You cannot combine this group buy order with a previous order as we cannot hold on to an order until the other one arrives.
  • You cannot order 2 kinds of GB/pre-order product together in one order.

Quality Disclaimer

  • Appearance QC standards (including Stainless steel PVD weight) are as follows:

    According to GB QC standard, our QC is in the light conditions are normal, and keep the distance between 20-25 cm to check the keyboard‘s appearance. If there is no defect then the QC check is passed.

    If the keyboard has problems such as dirt/spot/trachoma, as long as the dirt/spot/trachoma is less than 0.8-2.0 mm² (check with a film caliper), the QC check will pass. You can view the table of QC standards for dirt/spot/trachoma.
  • Plating marks caused by hanging holes inside during keyboard production are normal phenomena during production.
  • Due to the special material properties of PVD, there may be slight, unavoidable dust on the mirror surface during production. These are normal phenomena and within our quality approval range.
  • The final product color may be different from the rendering, but it is an acceptable range. It mainly refers to the actual product.
